Truck Stopper RB003-40 PAS68 Rising Bollard - Crash Tested to stop a 7500kg vehicle @ 50mph
- Warranty 12 month for product and installation
- Lead Time 5 Working Days
Installation Available UK-wide
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview
The Truckstopper RB003-50 is a shallow mount rising bollard, crash tested to PAS 68/IWA 14 standards to stop a 7.5-tonne truck travelling at 50mph (80km/h), providing robust anti-terrorist protection with no need for deep foundations or mains power.
This patented shallow mount rising bollard system represents a major step forward in bollard technology—drastically reducing both groundwork and installation costs compared to traditional deep-mount systems. Developed by our Micro Engineering Division, it meets the growing demand for shallow foundation solutions in both manual and hydraulic formats.

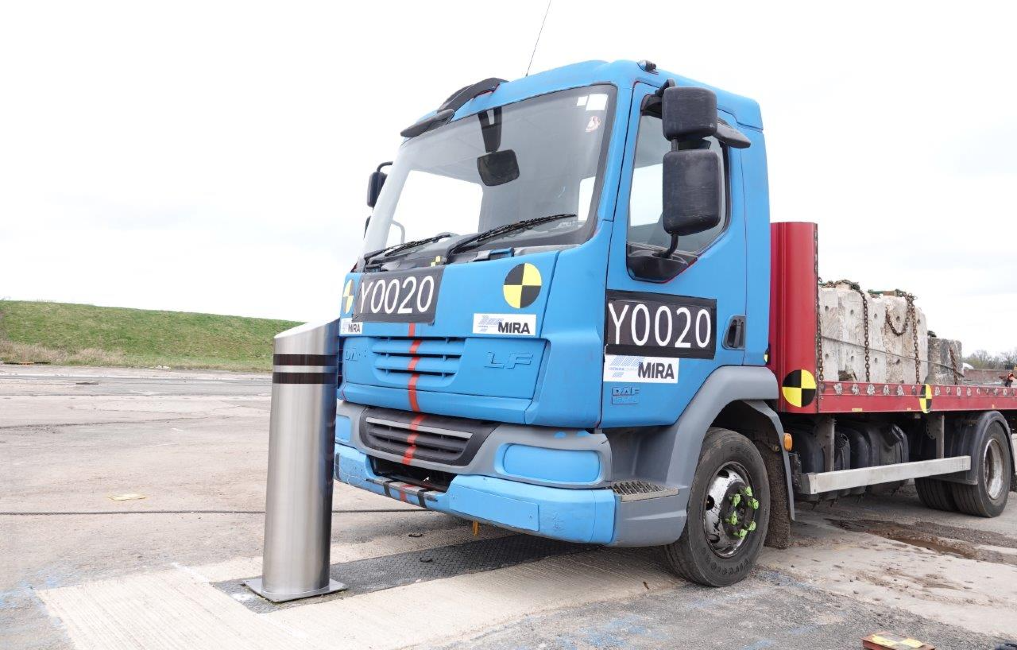

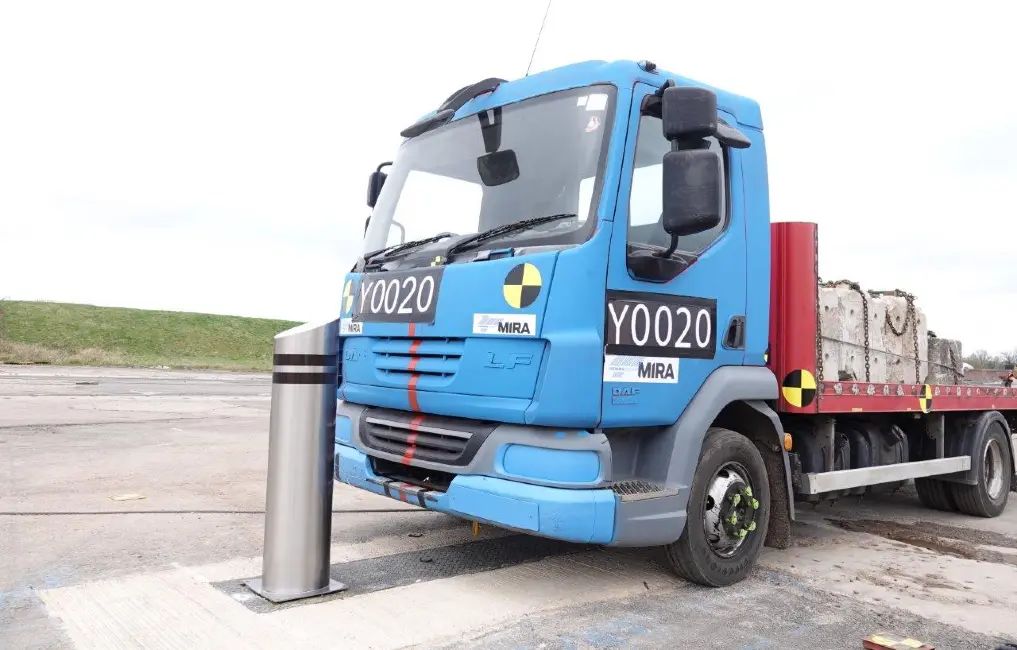

Requiring no mains power, the bollard is raised and lowered using a standard 18v cordless drill. Crash tested to stop a 7.5-tonne truck travelling at 50mph (80km/h) at 90 degrees, the system remained operational even after impact. Its shallow 580mm foundation reduces the need to re-divert underground utilities, making it one of the most cost-effective and practical options available.
Installed as a standalone unit, it is low maintenance, suitable for use on gradients, and designed to follow the contours of the ground. In the event of damage, all internal components can be easily removed and replaced without disturbing the foundation. When fitted with a stainless steel cover, the bollard delivers an aesthetically pleasing finish suitable for public and commercial environments.
The RB003-50 comes with a grade 316 stainless steel shroud as standard, with up to one or two hi-viz bands in a variety of colour options.
Shrouds can be supplied in any standard RAL colour, with fully bespoke designs available to match specific project requirements. To explore the options, get in touch with our sales team on 01535 500901.
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
-
Residential Driveways
-
Commercial Buildings
-
Schools
-
Business Parks
-
Warehouses
-
Retail Parks
-
Private Estates
Why Choose This Product?
Practical advantages that matter on real sites.
-
Heavy-duty construction
Built with reinforced steel for long-term outdoor performance.
-
Low maintenance
Designed to minimise service intervals and ongoing costs.
-
Reliable daily operation
Tested for thousands of cycles in high-traffic environments.
-
Suitable for high-traffic locations
Trusted in car parks, retail parks and commercial estates.
-
Professional UK installation available
Nationwide fitting by our accredited engineers.
Product Media
Watch product and installation videos, and browse real project photography.
Project Images
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance and build details for this model.
| Security Rating | IWA14-1 2013 Bollard V/7200[N2A]/80/90:3.1 |
|---|---|
| Application | High Risk Areas |

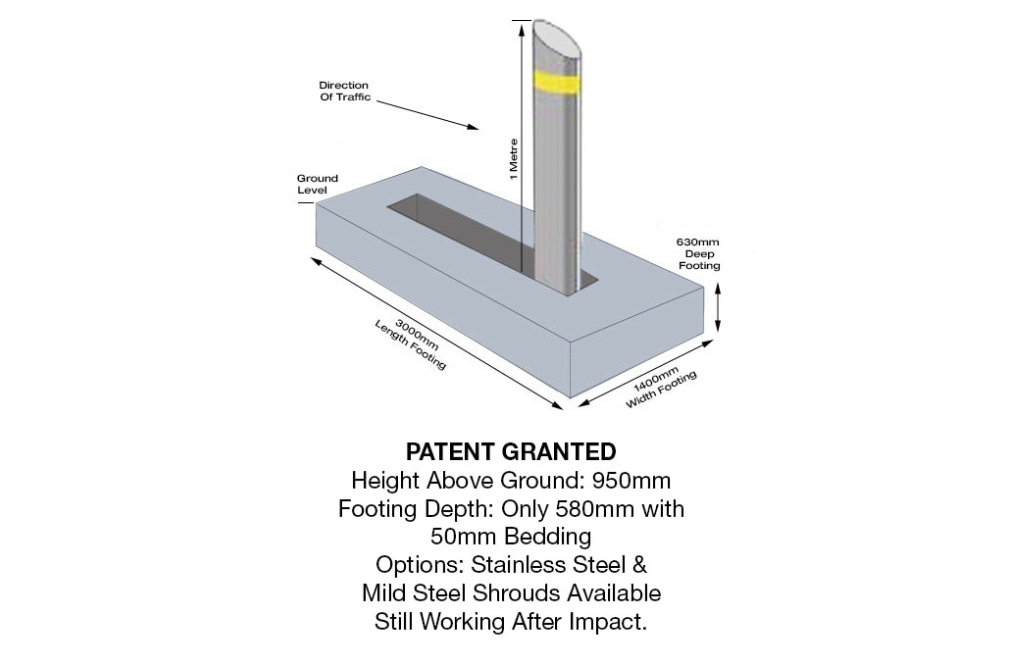

| Foundation Depth | 580mm |
| Footprint Measurements | 1400mm (W) X 3000mm (L) X 580mm with 50mm bedding (D) |
| Shroud Material | Grade 316 satin polished stainless steel as standard |
| Shroud Finish (as Standard) | The shroud is available in any design/material as requested. Please contact us to discuss your exact requirements. |
| RAL Colours | All standard RAL colurs are available |
| Core Material | Steel spring |
| Tested Core Dimensions | 200mm (W) X 200mm (L) X 950mm (H) from FFL |
| Height (above ground) | 1000mm |
| Bollard Spacing | 1400mm centres, 1200mm spacing between tested cores |
| Minimum Array | One |
| Cover Material | 316 stainless steel (bespoke finishes available) |
| Cover Load Test | D400 highways specification and to 24 tonnes |
| Driving Over Cover Speed | 5MPH recommended |
| Fixing | Root fixed in concrete using compliant rebar cage |
| Warranty | 12 month for product and installation |
Compare Similar Bollards
Side-by-side comparison of similar products in the same category.
| Image | Model | Height | Diameter | Type | Best Application | Warranty | Installation |
|---|---|---|---|---|---|---|---|
|
|
Truck Stopper RB003-40 PAS68 Rising Bollard – Crash Tested to stop a 7500kg vehicle @ 50mph Current model | 1000mm | Root fixed in concrete using compliant rebar cage | High Risk Areas | 12 month for product and installation | Installation available | |
|
SP100 PAS68 Crash Rated Telescopic Bollard (900mm) | 897mm | 127mm for galvanised version, 141mm for stainless steel version | Root Fixed | Suitable for commercial applications | 12 month for product and installation | Supply & Installation available |
|
Beninca Rise Maximum 30 – PAS68 Crash Rated Automatic Bollard | 275mm | Suitable for residential and commercial applications | 12 Months | Installation available | ||
|
CrashCore Bollard S20 Shallow Mount – Crash tested to stop a 5000lb vehicle @ 20mph | 1016mm | Root fixed in concrete using compliant rebar cage | Public spaces, ATM's, drive throughs, parking, outdoor seating areas, retail parks and business centres | 12 month for product and installation | Installation available |
Trusted Reviews
What customers say about Truck Stopper RB003-40 PAS68 Rising Bollard - Crash Tested to stop a 7500kg vehicle @ 50mph and Bollard Security
Frequently Asked Questions
Common buying questions answered up front.
-
Most automatic bollard installations are completed within one working day once the site has been surveyed and prepared.
-
We recommend a scheduled service visit every 12 months to keep your bollard operating reliably and to validate the warranty.
-
All our automatic bollards come with a manufacturer-backed warranty. See the product Downloads section for the full document.
-
Stocked models typically install within 5 working days. Bespoke orders depend on specification and are quoted per project.
-
Most automatic bollards integrate with standard access control systems. Contact us with your existing setup and we will confirm compatibility.
-
Automatic bollards are commonly installed on driveways, commercial entrances, car parks, retail parks, schools and private estates.
