Installed by
CrashCore Bollard S20 Shallow Mount - Crash tested to stop a 5000lb vehicle @ 20mph
- Warranty 12 month for product and installation
- Lead Time 5 Working Days
Installation Available UK-wide
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview
The CrashCore Bollard S20 Shallow Mount provides certified vehicle impact protection, tested to ASTM F3016 standards to stop a 5,000 lb pickup truck at 20 mph, with the advantage of a shallow foundation design.
The CrashCore Bollard S20 Shallow delivers certified vehicle impact protection in a low-profile design well-suited for settings with shallow foundations. Tested to ASTM F3016 standards, it reliably stops a 5,000 lb pickup truck travelling at 20 mph.
Supplied as a complete kit including core, cover, rebar cage and installation hardware (concrete not included), it is engineered for a shallow-core installation that can be completed in under an hour, ensuring quick deployment with minimal disruption.
With an extensive range of cover styles, the S20 Shallow blends seamlessly into retail, public, industrial and commercial environments. It combines reliable crash performance, sleek design and installation flexibility, making it an ideal choice where both safety and shallow site constraints must be balanced.
To discuss your bollard options and installation, please contact one of our sales team at 01535 509001
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
-
Residential Driveways
-
Commercial Buildings
-
Schools
-
Business Parks
-
Warehouses
-
Retail Parks
-
Private Estates
Why Choose This Product?
Practical advantages that matter on real sites.
-
Heavy-duty construction
Built with reinforced steel for long-term outdoor performance.
-
Low maintenance
Designed to minimise service intervals and ongoing costs.
-
Reliable daily operation
Tested for thousands of cycles in high-traffic environments.
-
Suitable for high-traffic locations
Trusted in car parks, retail parks and commercial estates.
-
Professional UK installation available
Nationwide fitting by our accredited engineers.
Product Media
Watch product and installation videos, and browse real project photography.

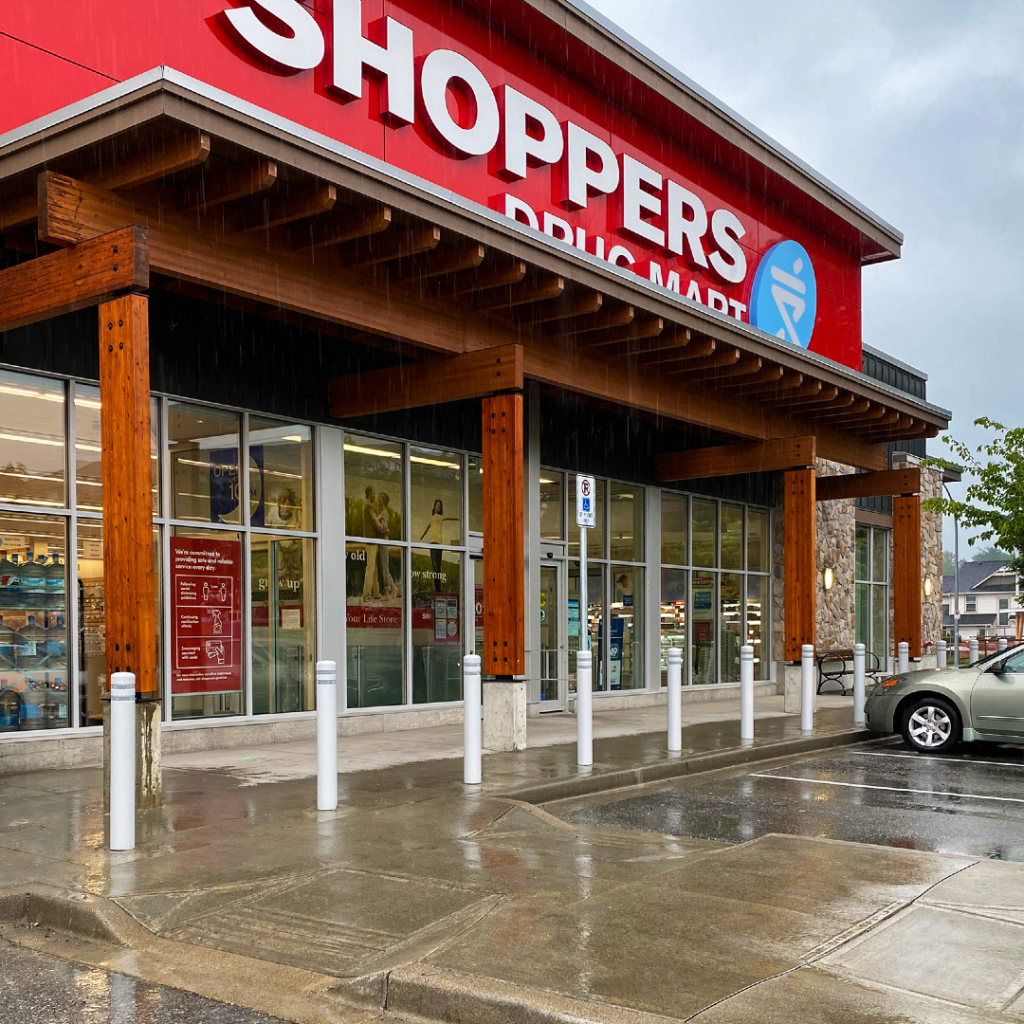

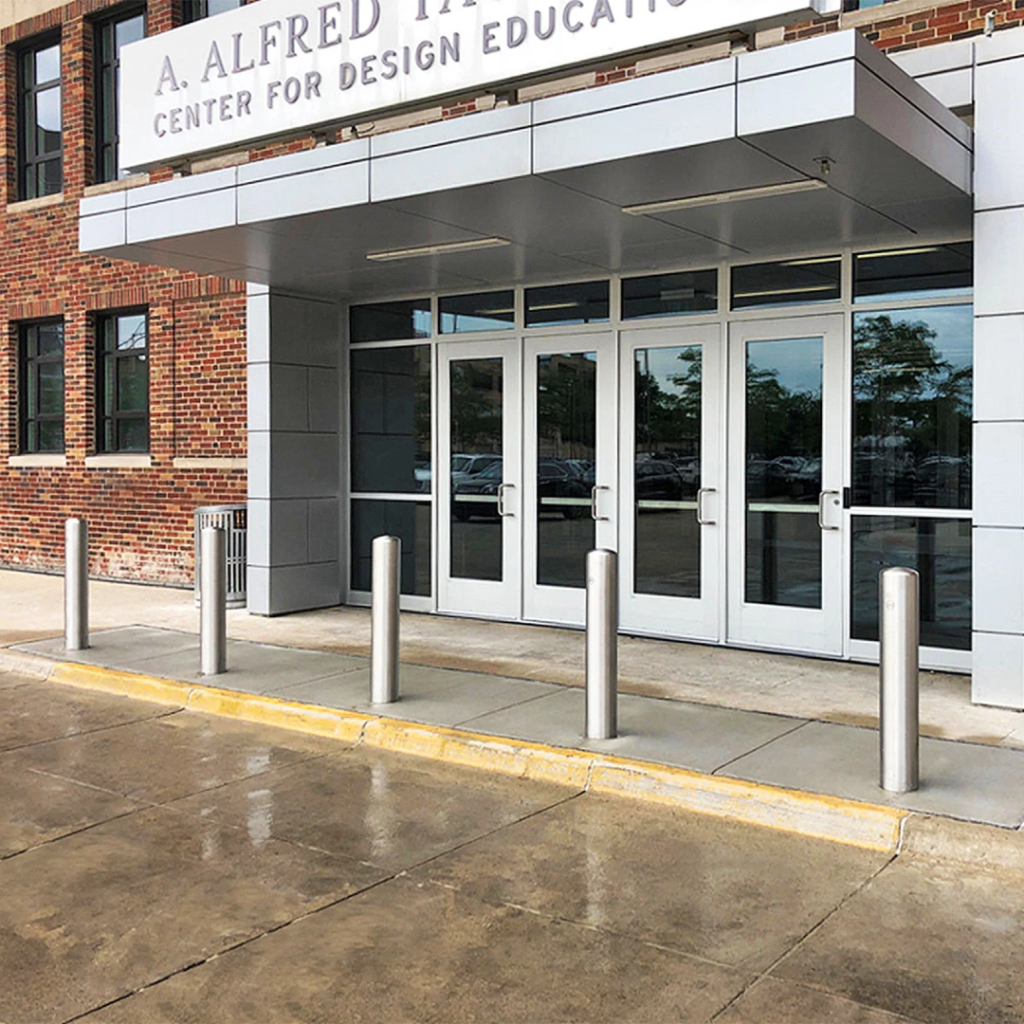

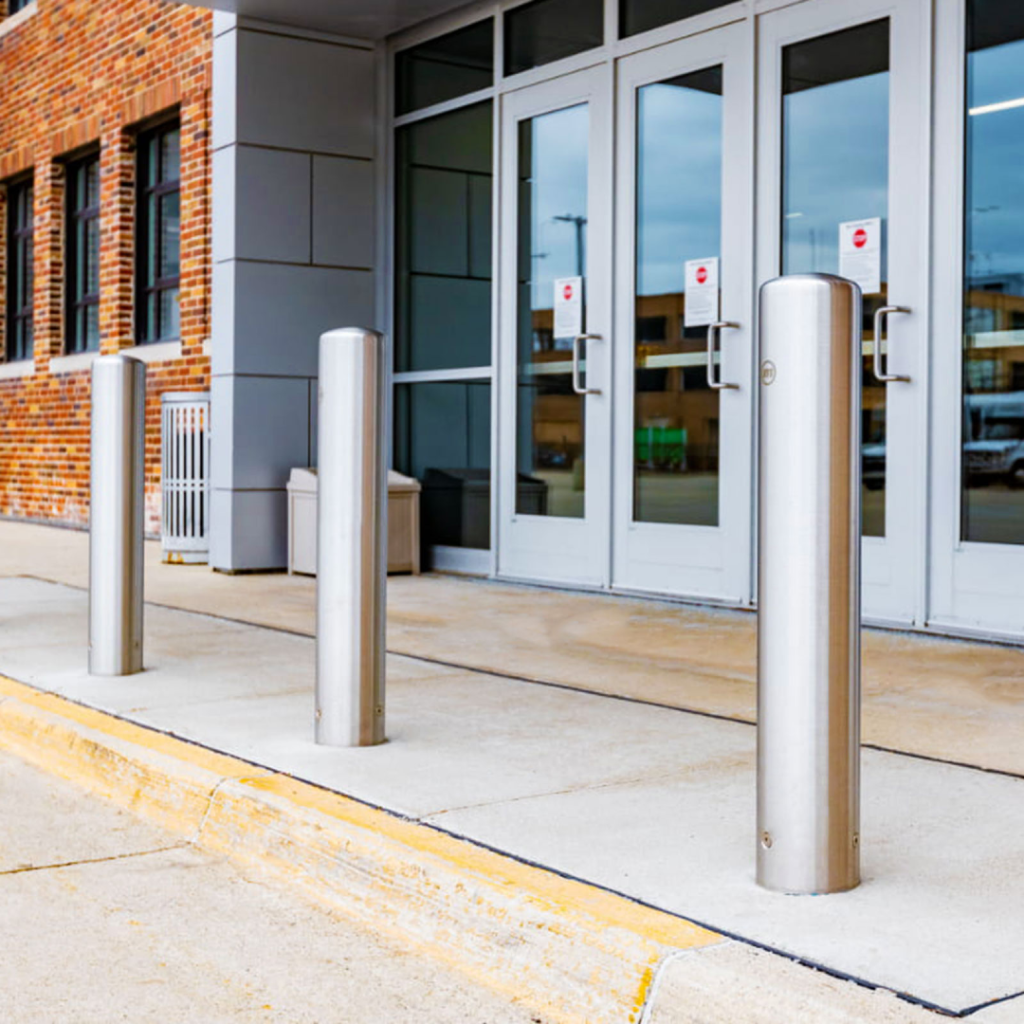

Project Images
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance and build details for this model.
| Crash Testing | ASTM F3016 |
|---|---|
| Application | Public spaces, ATM's, drive throughs, parking, outdoor seating areas, retail parks and business centres |
| Foundation Depth | 305mm |
| Shroud Diameter | Stainless Steel 168mm |
| Height (above ground) | 1016mm |
| Shroud Material | Option of stainless steel or plastic cover with reflective banding |
| Core Material | Option of stainless steel or a plastic shroud with 2 relective bands |
| Minimum Array | One |
| Fixing | Root fixed in concrete using compliant rebar cage |
| Warranty | 12 month for product and installation |
Downloads
Datasheets, drawings and certificates for this product.
Compare Similar Bollards
Side-by-side comparison of similar products in the same category.
| Image | Model | Height | Diameter | Type | Best Application | Warranty | Installation |
|---|---|---|---|---|---|---|---|
|
|
CrashCore Bollard S20 Shallow Mount – Crash tested to stop a 5000lb vehicle @ 20mph Current model | 1016mm | Root fixed in concrete using compliant rebar cage | Public spaces, ATM's, drive throughs, parking, outdoor seating areas, retail parks and business centres | 12 month for product and installation | Installation available | |
|
SP100 PAS68 Crash Rated Telescopic Bollard (900mm) | 897mm | 127mm for galvanised version, 141mm for stainless steel version | Root Fixed | Suitable for commercial applications | 12 month for product and installation | Supply & Installation available |
|
Beninca Rise Maximum 30 – PAS68 Crash Rated Automatic Bollard | 275mm | Suitable for residential and commercial applications | 12 Months | Installation available | ||
|
CrashCore S10 Fixed Static Bollard – Crash tested to stop a 5000lb vehicle @ 10mph | 1016mm | Root fixed in concrete using compliant rebar cage | Public spaces, ATM's, drive throughs, parking, outdoor seating areas, retail parks and business centres | 12 month for product and installation | Installation available |
Trusted Reviews
What customers say about CrashCore Bollard S20 Shallow Mount - Crash tested to stop a 5000lb vehicle @ 20mph and Bollard Security
Frequently Asked Questions
Common buying questions answered up front.
-
Most automatic bollard installations are completed within one working day once the site has been surveyed and prepared.
-
We recommend a scheduled service visit every 12 months to keep your bollard operating reliably and to validate the warranty.
-
All our automatic bollards come with a manufacturer-backed warranty. See the product Downloads section for the full document.
-
Stocked models typically install within 5 working days. Bespoke orders depend on specification and are quoted per project.
-
Most automatic bollards integrate with standard access control systems. Contact us with your existing setup and we will confirm compatibility.
-
Automatic bollards are commonly installed on driveways, commercial entrances, car parks, retail parks, schools and private estates.
Need Help Choosing?
Speak to our team before you decide.
Ready to secure your property?
Request a free quote or speak to our team. We will help you choose the right bollard for your site.
