Truck Stopper 9-40 Shallow Mount PAS68 Bollard - Crash Tested to stop a 7500kg vehicle @ 40mph
- Warranty 12 month for product and installation
- Lead Time 5 Working Days
Installation Available UK-wide
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview
The Truckstopper 9-40 is crash tested to stop a 7.5 Tonne Truck travelling at 40mph/64km/h. It is one of the shallowest impact tested bollards available on the market today, with a foundation depth of just 200mm, reducing the need to re-divert utilities. This allows for installation at a fraction of the cost of traditional bollards.

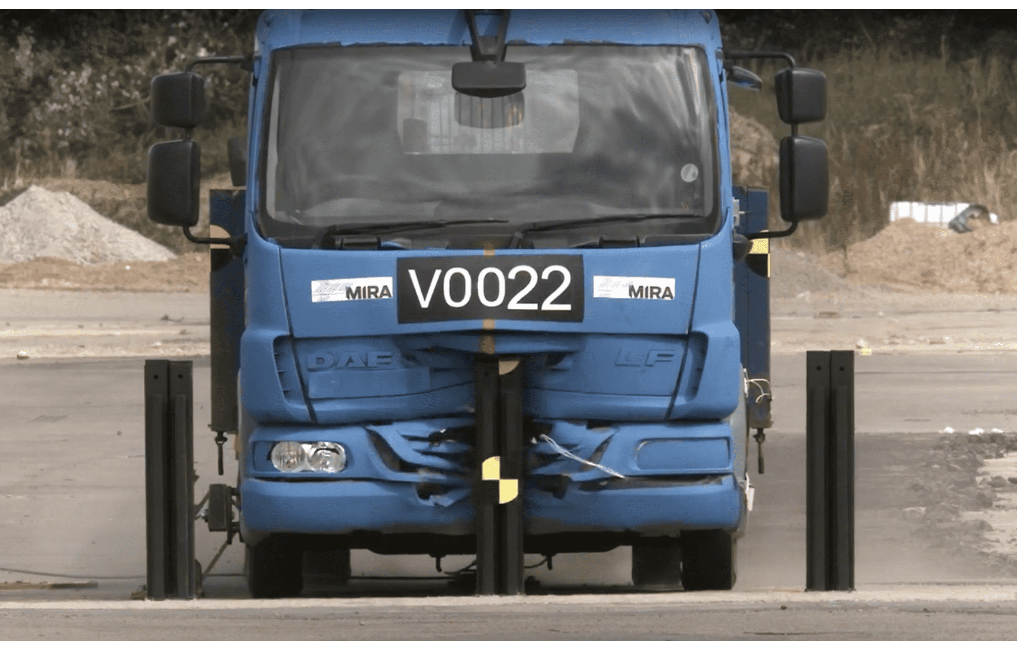

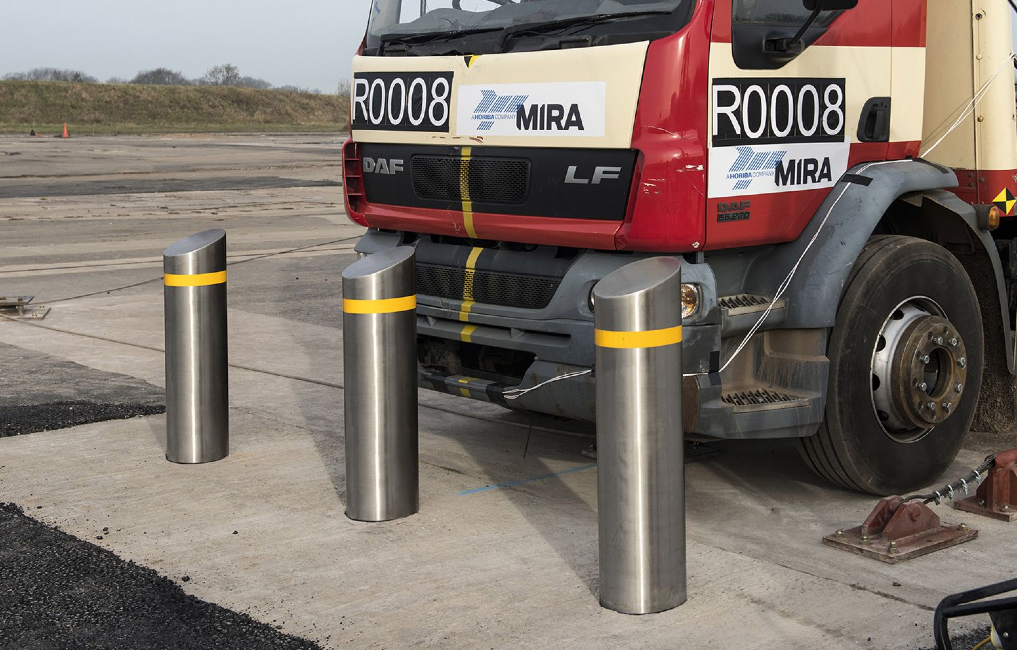

Crash tested with a 7.5 tonne GVW truck at 40mph (64km/h), the Truckstopper 9-40 features a super shallow foundation of just 200mm (8 inches), significantly reducing the need to divert underground services.
This is one of the most cost-effective removable (N2A) bollard systems available today.
It can be supplied as a fixed or removable unit for vehicle access and is delivered in modular kits for easy installation. The design is both practical and visually discreet, making it suitable for a wide range of environments.
The innovative slipper box (post socket box) is not rigid and can be repositioned independently, allowing the bollard to follow corners up to 90 degrees or adapt to sloped surfaces—without altering the box design.

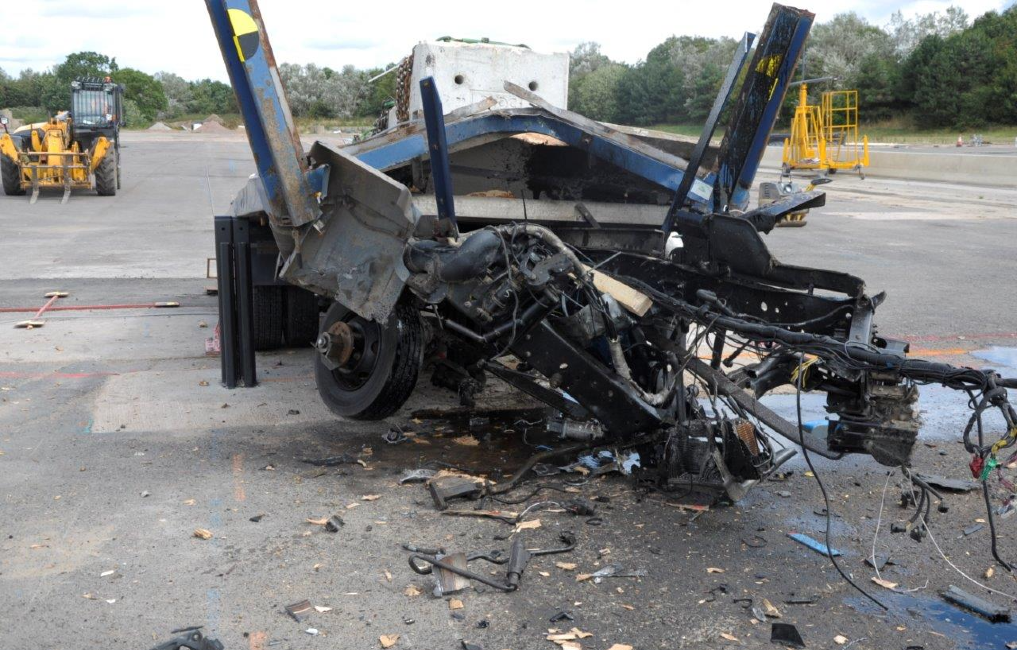

In impact testing, vehicle penetration was limited to just 2.4 metres.
All bollards can be supplied with bespoke shrouds to match project-specific aesthetic requirements.
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
-
Residential Driveways
-
Commercial Buildings
-
Schools
-
Business Parks
-
Warehouses
-
Retail Parks
-
Private Estates
Why Choose This Product?
Practical advantages that matter on real sites.
-
Heavy-duty construction
Built with reinforced steel for long-term outdoor performance.
-
Low maintenance
Designed to minimise service intervals and ongoing costs.
-
Reliable daily operation
Tested for thousands of cycles in high-traffic environments.
-
Suitable for high-traffic locations
Trusted in car parks, retail parks and commercial estates.
-
Professional UK installation available
Nationwide fitting by our accredited engineers.
Product Media
Watch product and installation videos, and browse real project photography.
Project Images
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance and build details for this model.
| Security Rating | iWA 14-1 BOLLARD V/7200[N2A]/64/90/2.4 |
|---|---|
| Application | High Risk Areas |
| Foundation Depth | 200mm |
| Foundation Area | 1200mm (l) x 900mm (w) x 200mm (d) |
| Shroud Material | Grade 316 satin polished stainless steel as standard |
| Shroud Finish (as Standard) | The shroud is available in any design/material as requested. Please contact us to discuss your exact requirements. |
| RAL Colours | All standard RAL colurs are available |
| Core Material | Steel spring |
| Tested Core Dimensions | 200MM W X 200MM L X 1000MM H FROM FFL |
| Height (above ground) | 1000mm |
| Bollard Spacing | 1400mm centres, 1200mm spacing between tested cores |
| Minimum Array | Three |
| Fixing | Root fixed in concrete using compliant rebar cage |
| Warranty | 12 month for product and installation |
