Truck Stopper 5-50 Shallow Mount PAS68 Bollard - Crash Tested to stop a 7500kg vehicle @ 50mph
- Warranty 12 month for product and installation
- Lead Time 5 Working Days
Installation Available UK-wide
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview
Truckstopper 5 is one of the shallowest impact-tested bollards available on the market today, with a foundation depth of just 400mm, reducing the need to re-divert utilities. This allows for installation at a fraction of the cost of traditional bollards. This crash-tested PAS 68/IWA 14 anti-terrorist bollard stops an 7.5 tonne truck travelling at 50mph/80km/h
The Truckstopper 5-50 is a patented spring-loaded bollard system from Safetyflex, engineered to absorb impact by flexing and redirecting kinetic energy back toward the vehicle—rather than transferring force into the foundations. Designed to follow ground contours, it can navigate corners without requiring special components and can also be removed to allow vehicle access.
With shallow foundations just 400mm deep and 1.2m wide, the Truckstopper 5 was successfully crash tested at MIRA to BSI PAS 68:2010, stopping an 7.5 tonne truck at 50mph (80km/h) at a 90-degree angle. If damaged, the bollard can be removed and replaced without disturbing the foundations.
Built for low maintenance, the steel structure offers a 20-year lifespan and only requires occasional repainting. Bollards can also be supplied with mild or stainless steel shrouds.
Bespoke shrouds are available to meet specific aesthetic requirements.
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
-
Residential Driveways
-
Commercial Buildings
-
Schools
-
Business Parks
-
Warehouses
-
Retail Parks
-
Private Estates
Why Choose This Product?
Practical advantages that matter on real sites.
-
Heavy-duty construction
Built with reinforced steel for long-term outdoor performance.
-
Low maintenance
Designed to minimise service intervals and ongoing costs.
-
Reliable daily operation
Tested for thousands of cycles in high-traffic environments.
-
Suitable for high-traffic locations
Trusted in car parks, retail parks and commercial estates.
-
Professional UK installation available
Nationwide fitting by our accredited engineers.
Product Media
Watch product and installation videos, and browse real project photography.
Project Images
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance and build details for this model.
| Security Rating | BSI PAS 68:2010 V/7500(N3)/80/90:6.0/18.8 |
|---|---|
| Application | High Risk Areas |
| Foundation Depth | 400mm |
| Foundation Area | 1200mm (l) x 400mm (d) |
| Shroud Material | Grade 316 satin polished stainless steel as standard |
| Shroud Finish (as Standard) | The shroud is available in any design/material as requested. Please contact us to discuss your exact requirements. |
| RAL Colours | All standard RAL colurs are available |
| Core Material | Steel spring |
| Test Core Dimensions | 200MM W X 200MM L X 1050MM H FROM FFL |
| Height (above ground) | 1050mm |

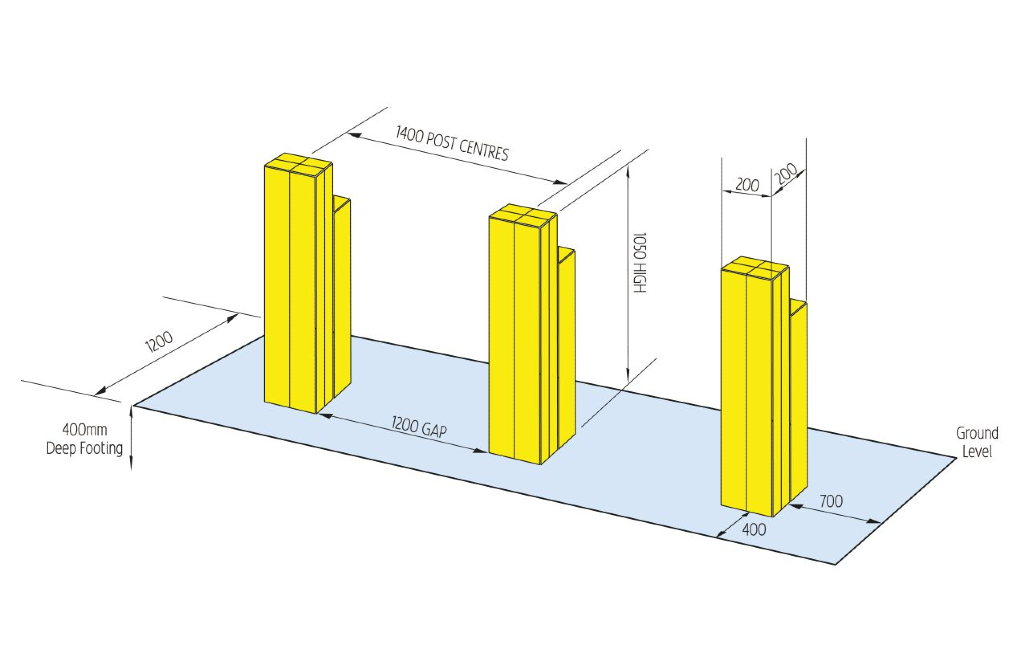

| Bollard Spacing | 1400mm centres, 1200mm spacing between tested cores |
| Minimum Array | Three |
| Fixing | Root fixed in concrete using compliant rebar cage |
| Warranty | 12 month for product and installation |
