Truck Stopper 3 - Shallow Mount PAS68 - Crash tested to stop a 7500kg vehicle @ 30mph
- Warranty 12 month for product and installation
- Lead Time 5 Working Days
Installation Available UK-wide
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview
A shallow mount, spring-loaded PAS 68 bollard designed to stop a 7.5-tonne truck travelling at 30mph (48km/h) with zero penetration on impact. Crash tested at 90° for maximum protection in high-risk locations.
The cost-effective TRUCKSTOPPER 3 is a practical solution for both perimeter security and stand-alone bollard installations. Designed to counter the threat of anti-terrorist attacks, it offers a fast and straightforward assembly process.
With foundation depths of just 400mm and a 1m width, it’s engineered to compete with traditional perimeter fences and street furniture for ease of installation. Successfully crash tested at MIRA to BSI PAS 68:2007, it stopped a 7.5 tonne truck travelling at 30mph (48km/h) with zero penetration. The system is flexible enough to follow ground contours and corners, requires no ongoing adjustment or tensioning, and the steel construction offers a 20-year lifespan with only occasional repainting. Bollards can be finished with a mild steel or stainless steel shroud to suit the application.
For added versatility, the shroud can also be custom-made to any specification. Clients can choose from a wide range of materials, patterns, and finishes – including Cor-Ten, timber, polyurethane, or powder-coated colour options – allowing the bollard to blend seamlessly into its surroundings or serve as a feature design element.
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
-
Residential Driveways
-
Commercial Buildings
-
Schools
-
Business Parks
-
Warehouses
-
Retail Parks
-
Private Estates
Why Choose This Product?
Practical advantages that matter on real sites.
-
Heavy-duty construction
Built with reinforced steel for long-term outdoor performance.
-
Low maintenance
Designed to minimise service intervals and ongoing costs.
-
Reliable daily operation
Tested for thousands of cycles in high-traffic environments.
-
Suitable for high-traffic locations
Trusted in car parks, retail parks and commercial estates.
-
Professional UK installation available
Nationwide fitting by our accredited engineers.
Product Media
Watch product and installation videos, and browse real project photography.
Project Images
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance and build details for this model.
| Security Rating | (BSI PAS68:2007) V/7500/N2/48/90/0.0/0.0 |
|---|---|
| Application | High Risk Areas |

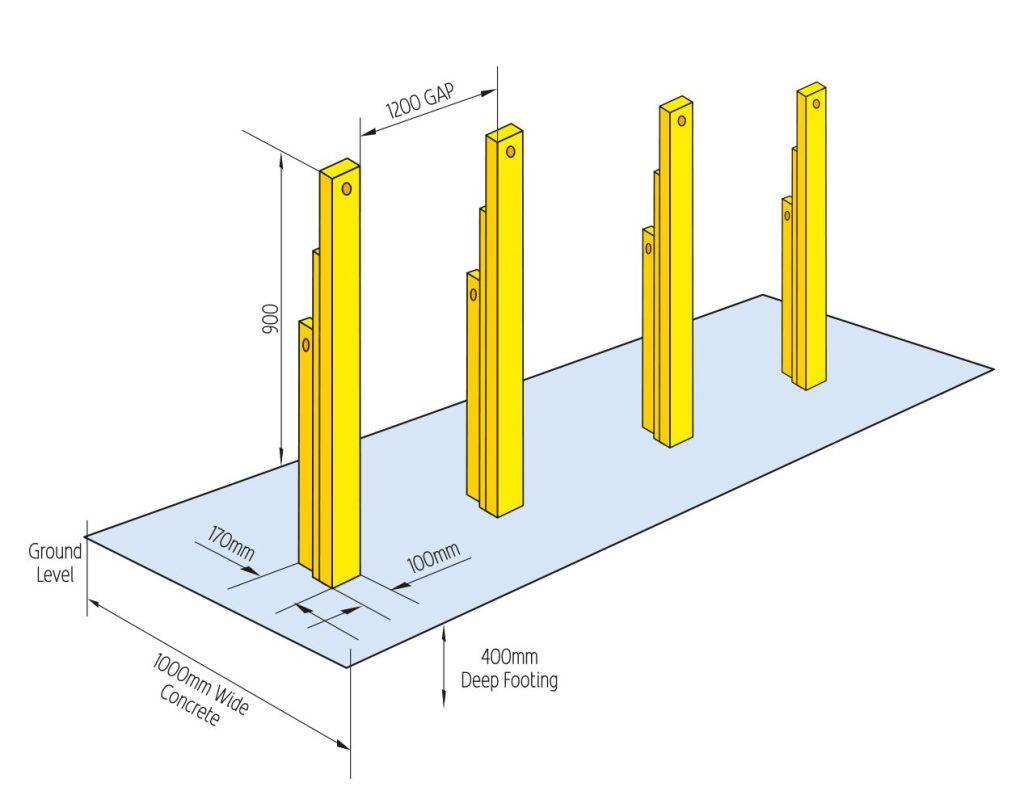

| Foundation Depth | 400mm |
| Foundation Area | 1000 (w) x 400mm (d) |
| Shroud Material | Grade 316 satin polished stainless steel as standard |
| Shroud Finish (as Standard) | The shroud is available in any design/material as requested. Please contact us to discuss your exact requirements. |
| RAL Colours | All standard RAL colurs are available |
| Core Material | Steel spring |
| Tested Core Dimensions | 100MM X 170MM L X 900MM H FROM FFL |
| Height (above ground) | 900mm |
| Bollard Spacing | 1300mm centres, 1200mm spacing between tested cores |
| Minimum Array | Three |
| Fixing | Root fixed in concrete using compliant rebar cage |
| Warranty | 12 month for product and installation |
Compare Similar Bollards
Side-by-side comparison of similar products in the same category.
| Image | Model | Height | Diameter | Type | Best Application | Warranty | Installation |
|---|---|---|---|---|---|---|---|
|
|
Truck Stopper 3 – Shallow Mount PAS68 – Crash tested to stop a 7500kg vehicle @ 30mph Current model | 900mm | Root fixed in concrete using compliant rebar cage | High Risk Areas | 12 month for product and installation | Installation available | |
|
SP100 PAS68 Crash Rated Telescopic Bollard (900mm) | 897mm | 127mm for galvanised version, 141mm for stainless steel version | Root Fixed | Suitable for commercial applications | 12 month for product and installation | Supply & Installation available |
|
Beninca Rise Maximum 30 – PAS68 Crash Rated Automatic Bollard | 275mm | Suitable for residential and commercial applications | 12 Months | Installation available | ||
|
CrashCore Bollard S20 Shallow Mount – Crash tested to stop a 5000lb vehicle @ 20mph | 1016mm | Root fixed in concrete using compliant rebar cage | Public spaces, ATM's, drive throughs, parking, outdoor seating areas, retail parks and business centres | 12 month for product and installation | Installation available |
Trusted Reviews
What customers say about Truck Stopper 3 - Shallow Mount PAS68 - Crash tested to stop a 7500kg vehicle @ 30mph and Bollard Security
Frequently Asked Questions
Common buying questions answered up front.
-
Most automatic bollard installations are completed within one working day once the site has been surveyed and prepared.
-
We recommend a scheduled service visit every 12 months to keep your bollard operating reliably and to validate the warranty.
-
All our automatic bollards come with a manufacturer-backed warranty. See the product Downloads section for the full document.
-
Stocked models typically install within 5 working days. Bespoke orders depend on specification and are quoted per project.
-
Most automatic bollards integrate with standard access control systems. Contact us with your existing setup and we will confirm compatibility.
-
Automatic bollards are commonly installed on driveways, commercial entrances, car parks, retail parks, schools and private estates.
