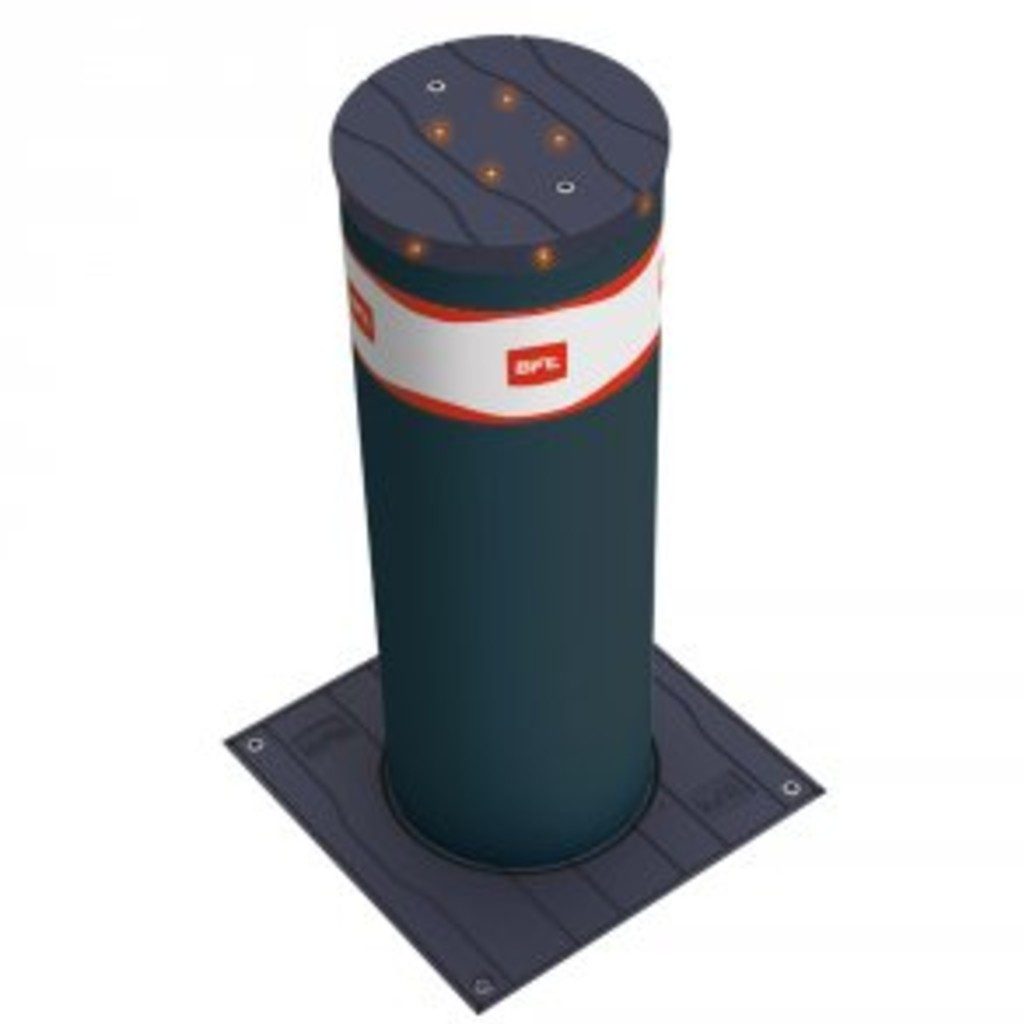

Pillar B 800 (PAS 68) Crash Rated Hydraulic Bollard - Complete Kit
- Warranty 12 month for product and installation
- Lead Time 5 Working Days
Installation Available UK-wide
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview
The Pillar B comes with a Failsafe or Fail Secure option: The Failsecure version is particularly suitable for sensitive sites such as ministries, airports and other buildings of importance, as the shaft raises in the event of a power failure. The Failsafe version is suitable for public installations where the shaft must lower freeing the passage in the event of a power failure. These bollards have been designed and built with the aim of simplifying maintenance with the hydraulic pump located under the flange.
Operated by a key fob, from your smartphone, or via an intercom, there will be an option that is suitable for your needs.
All the automatic bollards come complete as standard with a Perseo CBD dedicated control panel which manages up to 4 bollards in parallel and comes with a programming menu on the display, an integrated heating element and two key fob transmitters to operate the bollard.
Specification
- Diameter: 275mm
- Height: 800mm above ground
- Bollard wall thickness: 10mm
- PAS68 Crash Rated
The kit includes the following:
- Pillar B 275/800 (PAS68) hydraulic automatic bollard
- Perseo CBD control panel
- 2 x Mitto remote key fobs
- Integral 12 x LED light crown (can be disabled).
- Hydraulic oil-sealed motor.
If you would like any more advice on the various options and installation please contact us on 01535 509001
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
-
Residential Driveways
-
Commercial Buildings
-
Schools
-
Business Parks
-
Warehouses
-
Retail Parks
-
Private Estates
Why Choose This Product?
Practical advantages that matter on real sites.
-
Heavy-duty construction
Built with reinforced steel for long-term outdoor performance.
-
Low maintenance
Designed to minimise service intervals and ongoing costs.
-
Reliable daily operation
Tested for thousands of cycles in high-traffic environments.
-
Suitable for high-traffic locations
Trusted in car parks, retail parks and commercial estates.
-
Professional UK installation available
Nationwide fitting by our accredited engineers.
Product Media
Watch product and installation videos, and browse real project photography.
Project Images
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance and build details for this model.
| Diameter | 275mm |
|---|---|
| Height (above ground) | 800mm |
| Bollard Wall Thickness | 10mm |
| Control Unit | Perseo CBD control unit is included |
| Transmitter/Key Fob (operates bollard) | Mitto RCB 02 Key Fob included x 2 |
| Application | Suitable for residential and commercial applications |
| Operator Type | Hydraulic |
| Finish | Galvanised steel with an Anthracite Grey – RAL 7015 finish |
| Bollard Material | Galvanised Steel |
| LED Light Crown | LED light crown around top of bollard |
| Acoustic Warning Signal | Included (can be deactivated if required) |
| Rising Time | 6.5 seconds |
| Breaking Resistance | 250000 joules |
| Frequency of Use | Up to 3000 operations per day |
| Manufacturing Standards | BS1440 and BS EN ISO 1461 (2009) |
| Warranty | 12 month for product and installation |
Downloads
Datasheets, drawings and certificates for this product.
Compare Similar Bollards
Side-by-side comparison of similar products in the same category.
| Image | Model | Height | Diameter | Type | Best Application | Warranty | Installation |
|---|---|---|---|---|---|---|---|
|
|
Pillar B 800 (PAS 68) Crash Rated Hydraulic Bollard – Complete Kit Current model | 800mm | 275mm | Hydraulic | Suitable for residential and commercial applications | 12 month for product and installation | Installation available |
|
SP100 PAS68 Crash Rated Telescopic Bollard (900mm) | 897mm | 127mm for galvanised version, 141mm for stainless steel version | Root Fixed | Suitable for commercial applications | 12 month for product and installation | Supply & Installation available |
|
Beninca Rise Maximum 30 – PAS68 Crash Rated Automatic Bollard | 275mm | Suitable for residential and commercial applications | 12 Months | Installation available | ||
|
CrashCore Bollard S20 Shallow Mount – Crash tested to stop a 5000lb vehicle @ 20mph | 1016mm | Root fixed in concrete using compliant rebar cage | Public spaces, ATM's, drive throughs, parking, outdoor seating areas, retail parks and business centres | 12 month for product and installation | Installation available |
Trusted Reviews
What customers say about Pillar B 800 (PAS 68) Crash Rated Hydraulic Bollard - Complete Kit and Bollard Security
Frequently Asked Questions
Common buying questions answered up front.
-
Most automatic bollard installations are completed within one working day once the site has been surveyed and prepared.
-
We recommend a scheduled service visit every 12 months to keep your bollard operating reliably and to validate the warranty.
-
All our automatic bollards come with a manufacturer-backed warranty. See the product Downloads section for the full document.
-
Stocked models typically install within 5 working days. Bespoke orders depend on specification and are quoted per project.
-
Most automatic bollards integrate with standard access control systems. Contact us with your existing setup and we will confirm compatibility.
-
Automatic bollards are commonly installed on driveways, commercial entrances, car parks, retail parks, schools and private estates.
