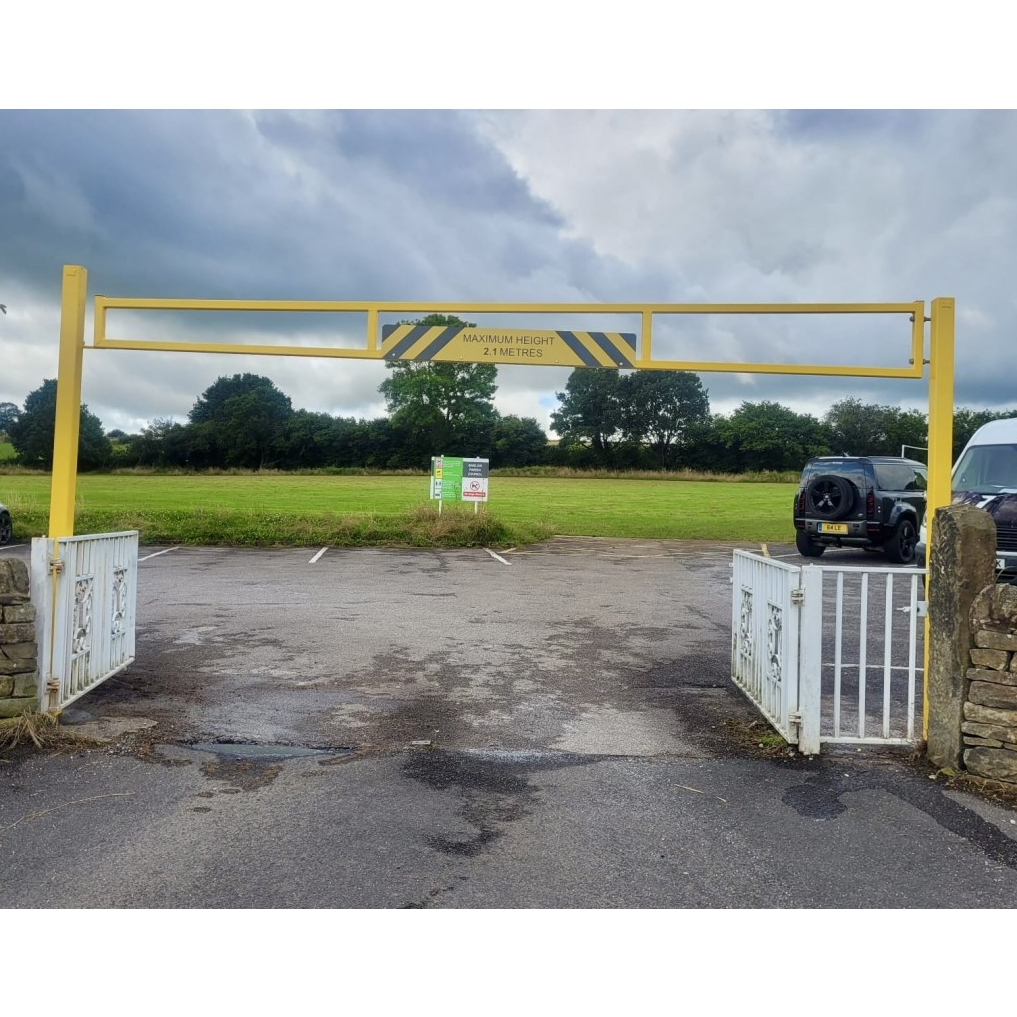

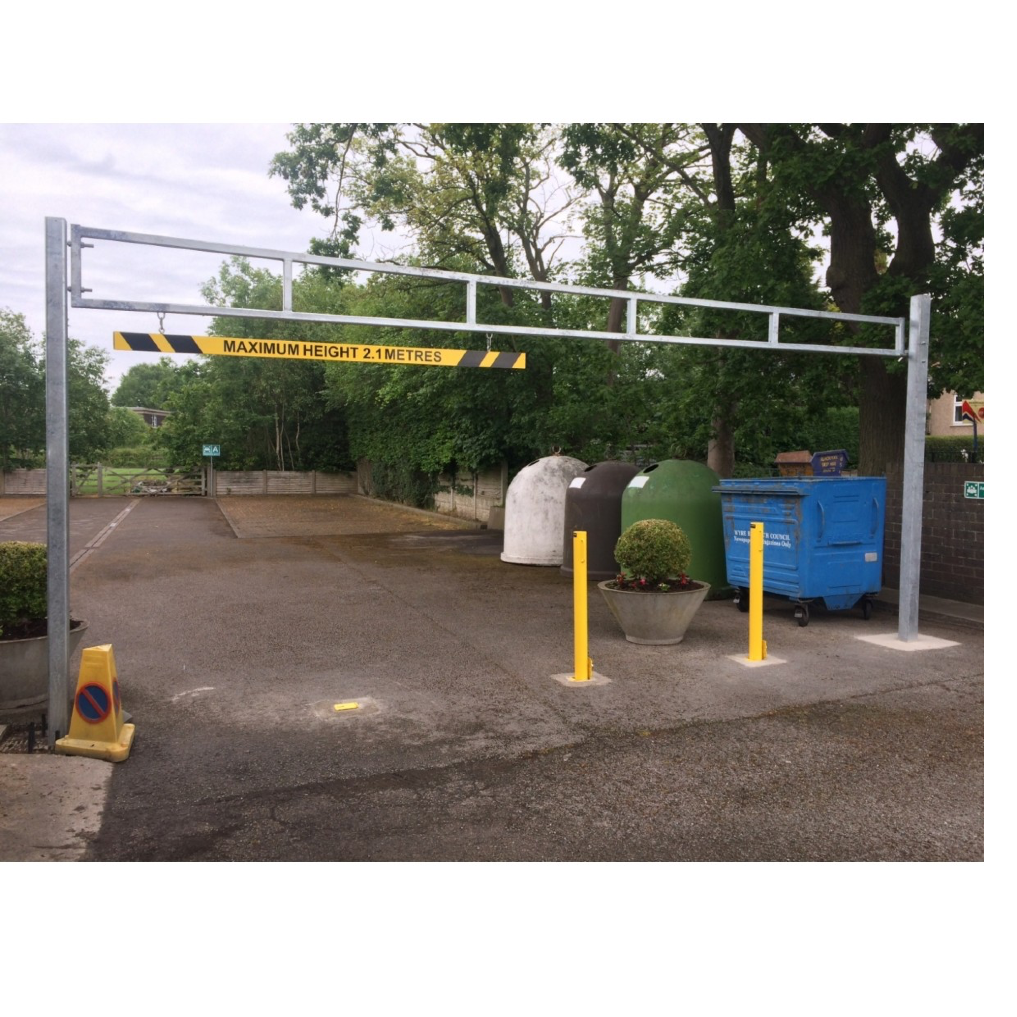

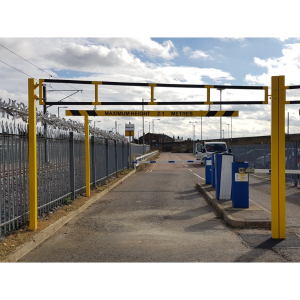

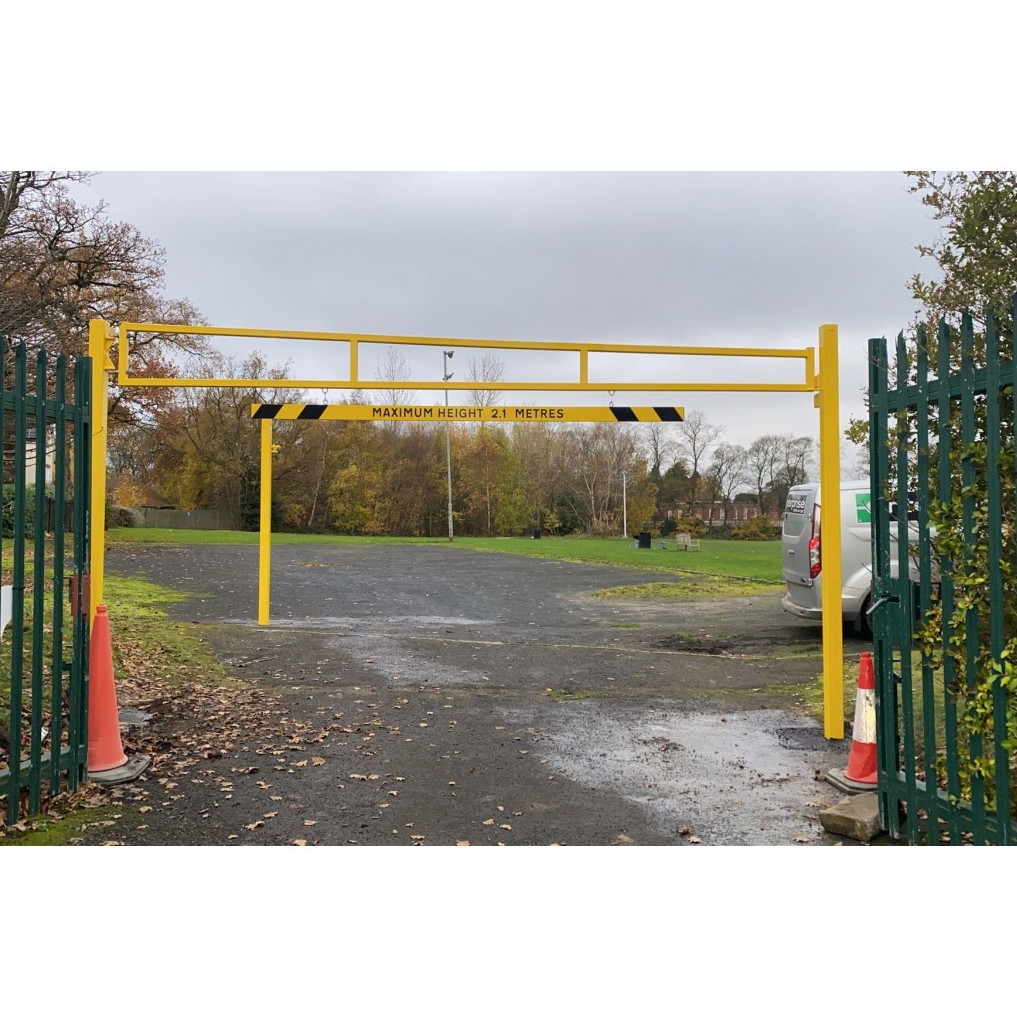

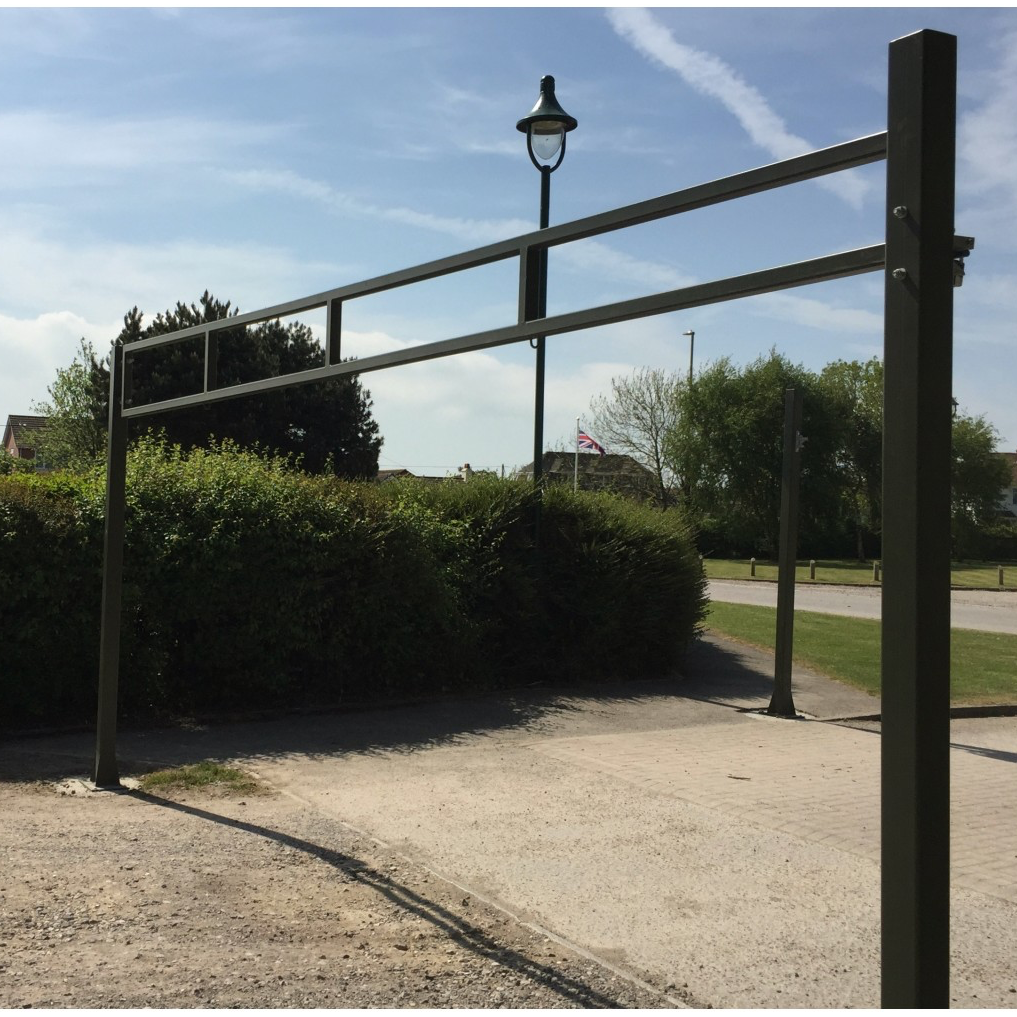

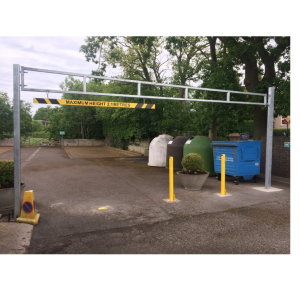

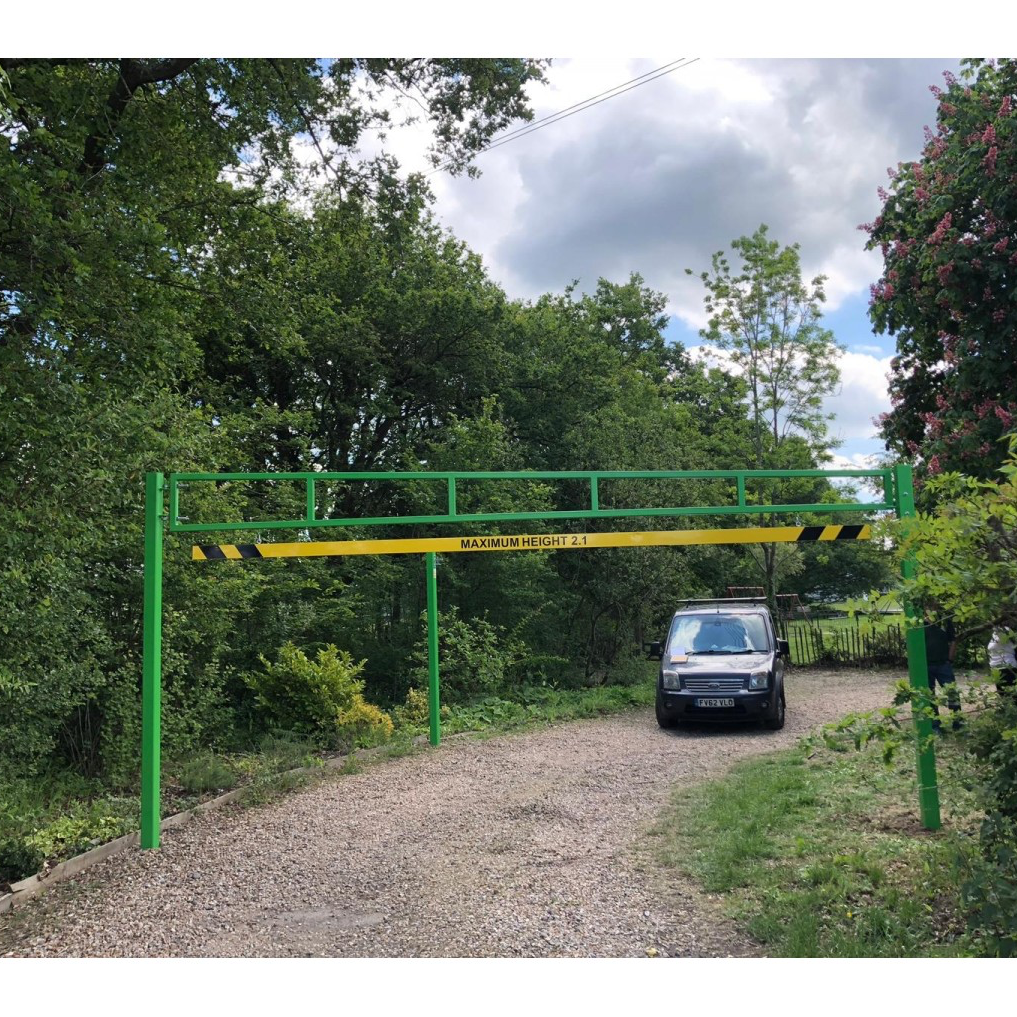

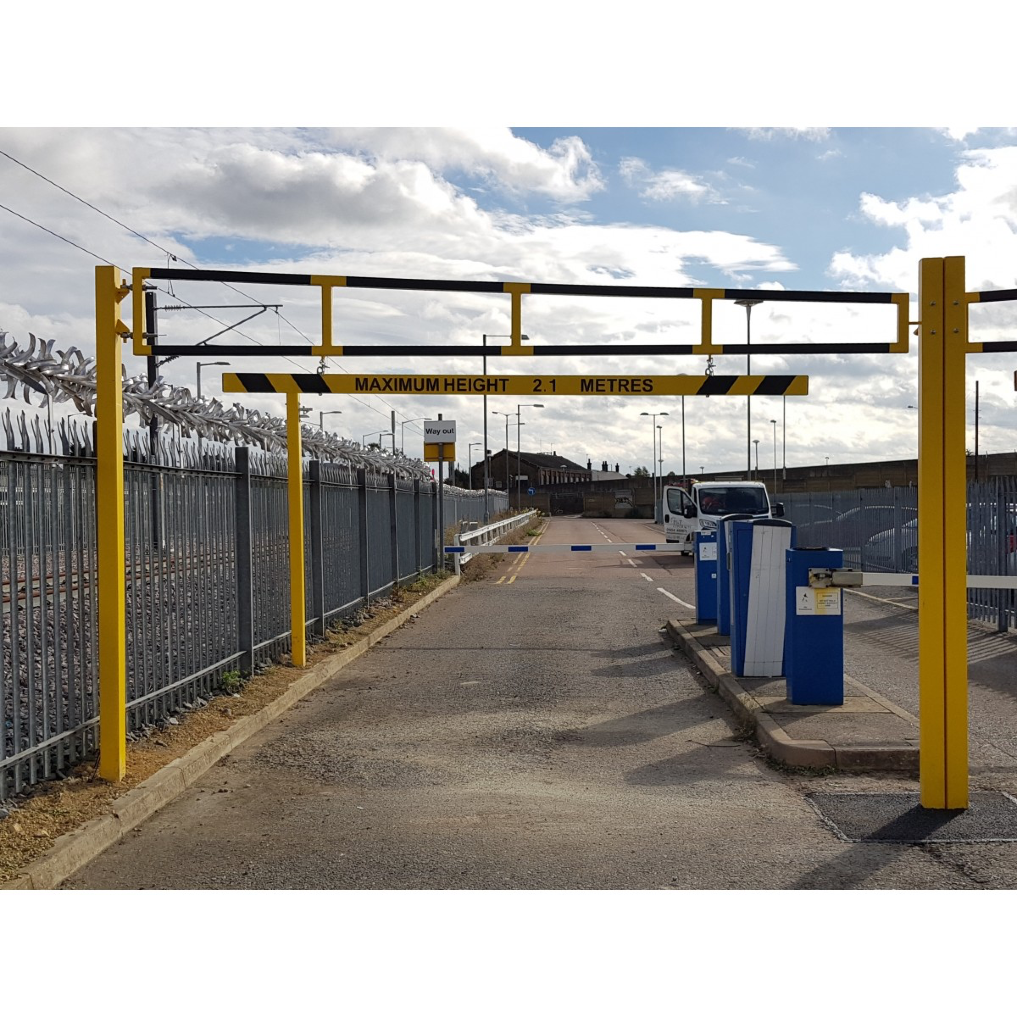

Height Restriction Barrier 3-6 Metres Opening Heavy Duty

The SB.23H height barrier is an excellent solution for restricting access by taller vehicles to areas like car parks, entrances, and other premises. Its gated design offers a robust, heavy-duty appearance while allowing easy opening when access for taller vehicles is required.

The SB.23H height barrier is a reliable solution for preventing access by taller vehicles to areas like car parks, entrances, and premises. With its robust, gated design, it delivers a heavy-duty appearance while allowing easy access for taller vehicles when needed.

Our single-leaf height barriers feature a heavy-duty, self-locking padlock facility, which keeps the gate securely closed without a padlock. For added security, a padlock can be applied to prevent the barrier from opening. If you choose the recommended latch-back post, it will be equipped with the same self-locking feature.

For enhanced padlock security, lock shrouds are available as an additional option. Crafted from heavy-duty steel, these shrouds are designed to deter tampering and prevent tools from cutting the padlock.

All our opening barriers are supplied with heavy-duty, galvanised adjustable eyebolts, enabling perfect alignment during installation.

Key Features

• Heavy-duty gated design
• Self-locking padlock facility included
• Galvanized adjustable eyebolts for precise alignment
• Optional lock shroud for added security
• Available in concrete-in or bolt-down options
• Galvanized and/or powder-coated finish
• 180° opening (dependent on hinge position)
• Optional Nudge Bar Warning Signage and Maximum Height Sign

Specifications

• Hinge Post: 100 x 100mm box section
• Latch & Latch Back Post: 100 x 100mm box section
• Height Barrier Gate: 50 x 50mm box section
• Concrete-In Depth: 760mm below ground
• Bolt-Down: 18mm diameter holes (fixings not supplied)

Delivery Times (Made to Order)

• Powder-Coated Only: 7-14 working days
• Galvanized Only: 7-14 working days
• Double Finish (Galvanized & Powder-Coated): 14-21 working days

Warranty Information

This product includes a 1-year standard warranty.
