Height Restrictor 'Easy Reach' - 3-6m - Heavy Duty with low level locking

The “Easy Open” height restriction barrier is manufactured with our drop lock, low level locking facility enabling convenient operation for users at chest height.

The SB.23E height restriction barrier is a reliable and robust solution to prevent unauthorized access by taller vehicles in areas like car parks, shopping centres, recreational grounds, and similar sites.

Each single-leaf height restrictor comes with a hinged post and latch post to securely close the gate. Our drop lock design features a low-level locking mechanism, allowing for easy operation at chest level for user convenience.

All of our height restrictors are supplied with galvanized heavy-duty adjustable eyebolts, enabling precise alignment during installation. For versatility, we offer both sunken (concrete-in) and surface-mounted (bolt-down) fixtures; however, we recommend concreting in for maximum security.

Latchback posts are available for securing the gate in the open position. These posts are equipped with the drop lock feature, offering flexibility during installation, as the latch post can be positioned anywhere along the barrier crossbar—ideal for tight spaces. The latchback post also includes a padlock facility for added security if the barrier needs to be locked in the open position.

Please note: latch back posts are manufactured to match the fixture type of the gate (concrete-in or bolt-down).

Our barriers are available in three finishes: powder-coated, galvanised, or a double finish (galvanised & powder-coated).

Note: This product is made to order, so you may need to confirm sizing before manufacture begins.

Specifications & Features

• Hinge Post: 100 x 100mm Box Section
• Latch Back Post: 100 x 100mm Box Section
• Barrier: 100 x 60 x 3mm Box Section
• Concrete-In Depth: 760mm Below Ground
• Bolt-Down: 18mm diameter holes (fixings not supplied)
• Drop Lock Facility: Convenient chest-level operation
• Galvanized adjustable eyebolts for precise alignment
• 180° gate opening (depending on hinge post position)
• Custom powder coating colours available upon request

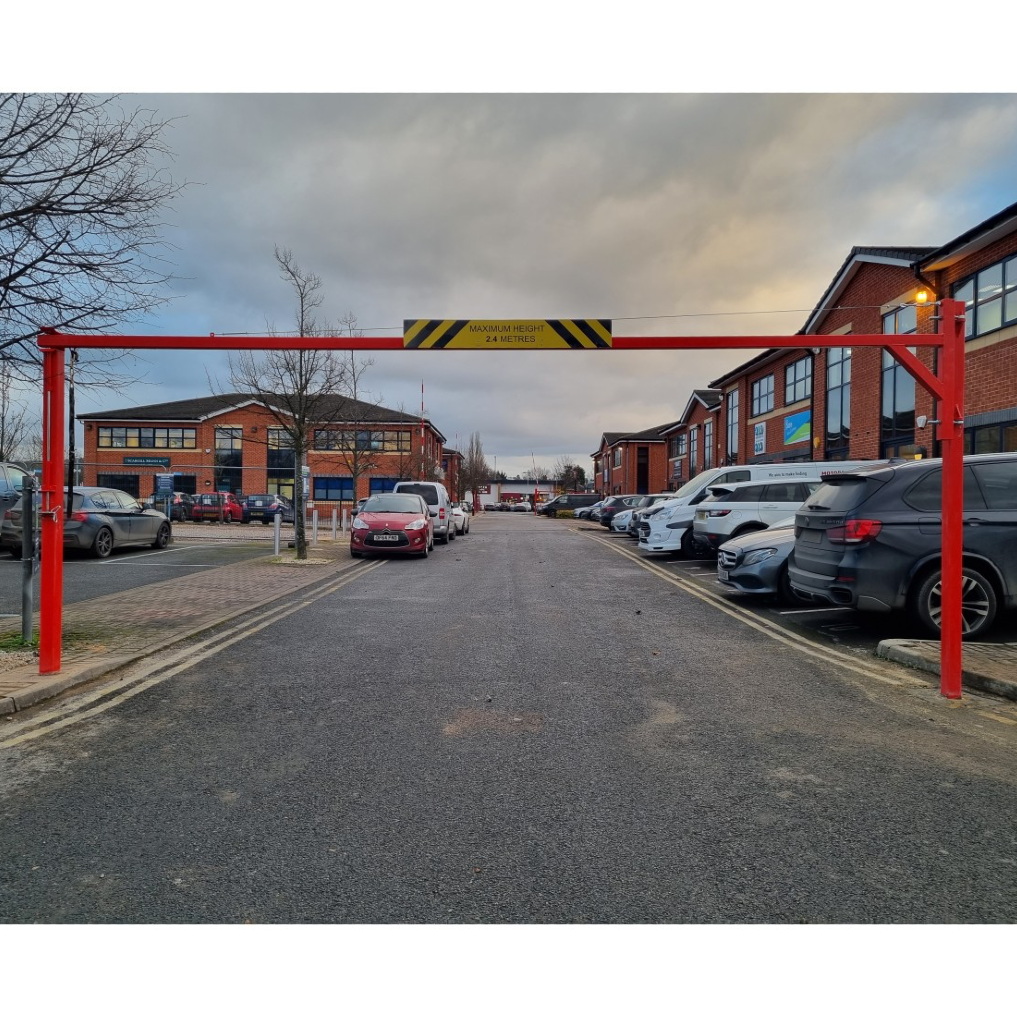

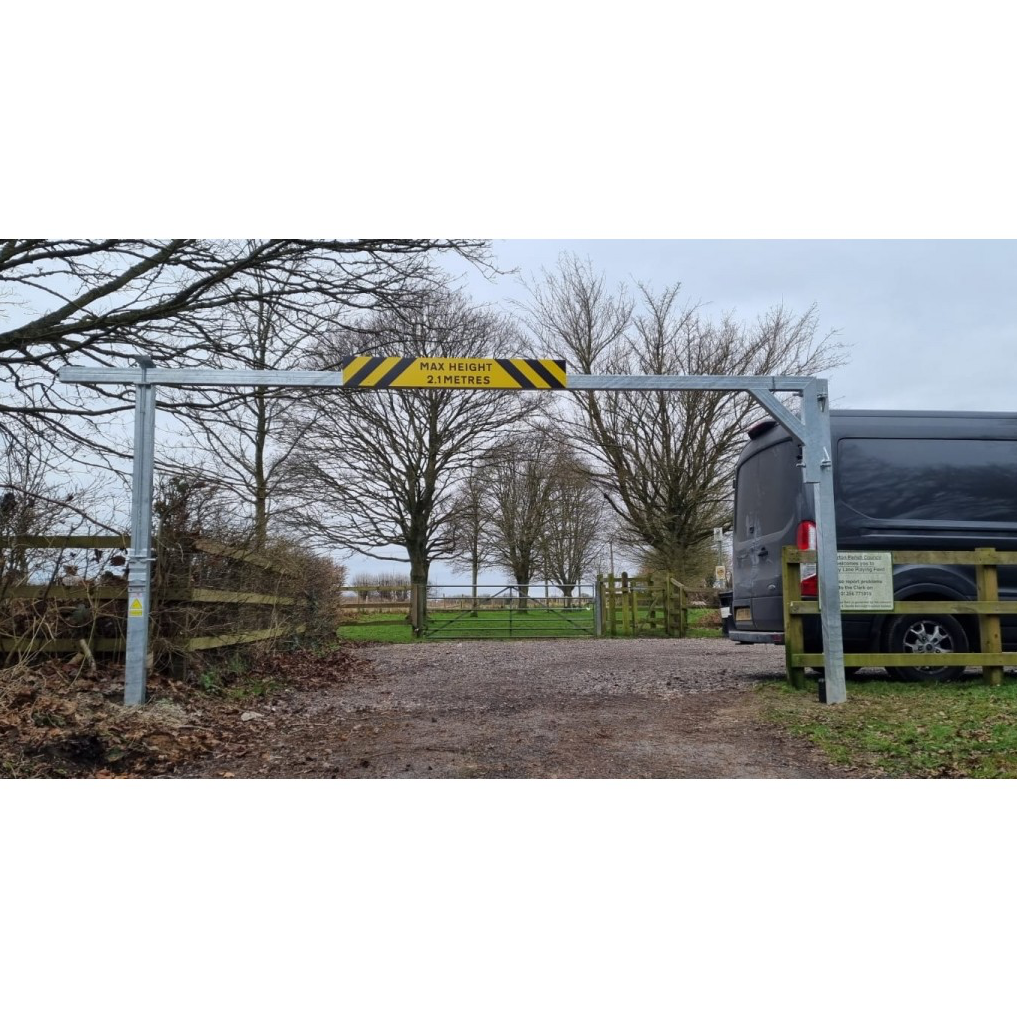

• For signage, the selected height will display on sign (e.g., “Maximum Height 2.1 Meters” if 2.1 meters is chosen)

Delivery

• Powder Coated Only: 7-14 working days
• Galvanized Only: 7-14 working days
• Double Finish (Galvanized & Powder Coated): 14-21 working days
