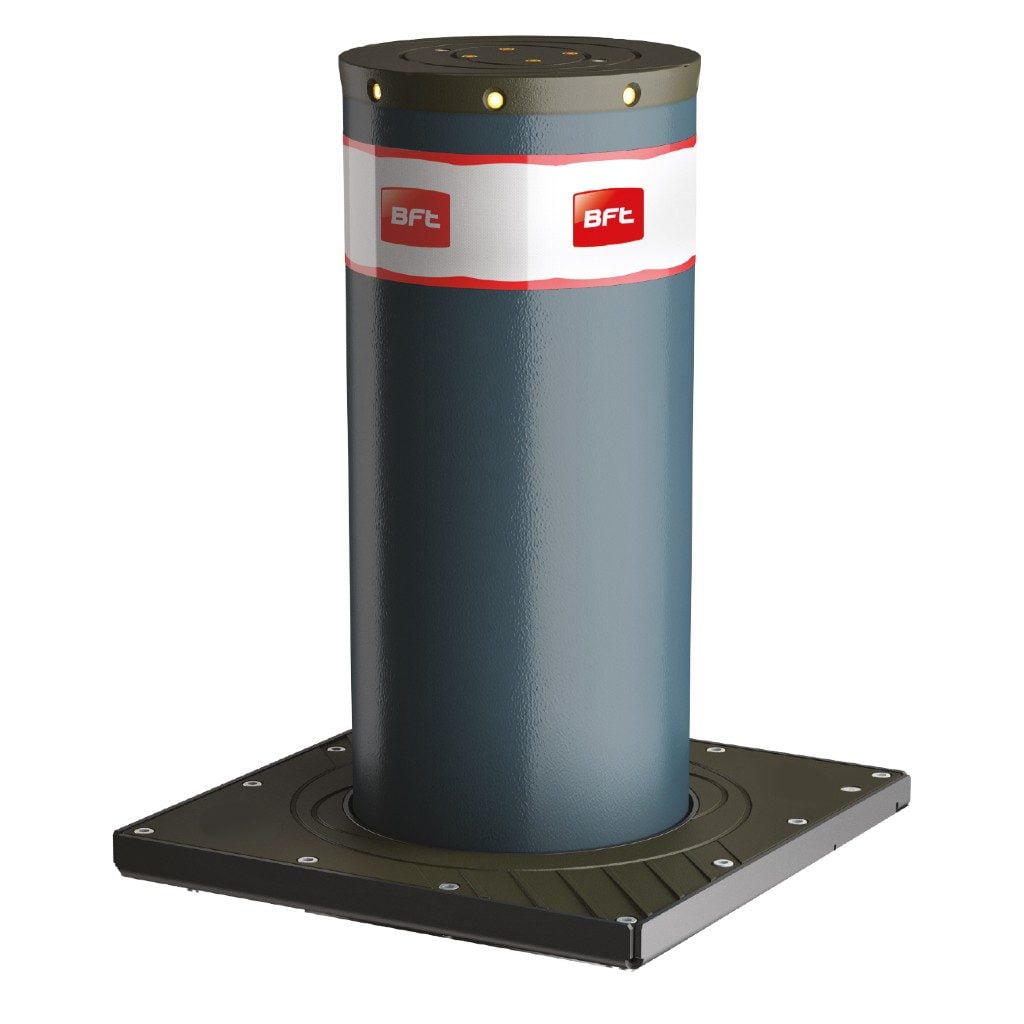

BFT Pillar B 275/600 Hydraulic Bollard - Complete Kit
Heavy-duty hydraulic automatic security bollard
- Warranty 12 month for product and installation
- Lead Time 5 Working Days
Installation Available UK-wide
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview
The Pillar B comes with a Failsafe or Fail Secure option: The Failsecure version is particularly suitable for sensitive site such as ministries, airports and other buildings of importance, as the shaft raises in the event of a power failure. The Failsafe version is suitable for public installations where the shaft must lower freeing the passage in the event of a power failure. These bollards have been designed and built with the aim of simplifying maintenance with the hydraulic pump located under the flange.
- Hydraulic drive system
- Heavy-duty construction
- Low maintenance
- Professional UK installation
Operated by key fob, from your smartphone, or via an intercom, there will be an option that is suitable for your needs.
All the automatic bollards come complete as standard with a Perseo CBD dedicated control panel which manages up to 4 bollards in parallel and comes with a programming menu on the display, an integrated heating element and two key fob transmitters to operate the bollard.
Specification
- Diameter: 275mm
- Height: 600mm above ground
- Bollard wall thickness: 6mm
The kit includes the following:
- Pillar B 275/600 hydraulic automatic bollard
- Perseo control panel
- 2 x Mitto remote key fobs
- Integral 12 x LED light crown (can be disabled).
- Integral acoustic warning signal (can be disabled).
- Hydraulic oil-sealed motor.
If you would like any more advice on the various options and installation please contact us on 01535 509001
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
- Residential Driveways
- Commercial Buildings
- Schools
- Business Parks
- Warehouses
- Retail Parks
- Private Estates
Why Choose This Product?
Practical advantages over standard bollards.
-
Hydraulic drive system
Powerful lifting performance for demanding applications.
-
Heavy-duty construction
Built for commercial and high-security installations.
-
Low maintenance
Designed to minimise service intervals and downtime.
-
Professional UK installation
Nationwide fitting by our accredited engineers.
Product Media
Watch product and installation videos, and browse real project photography.

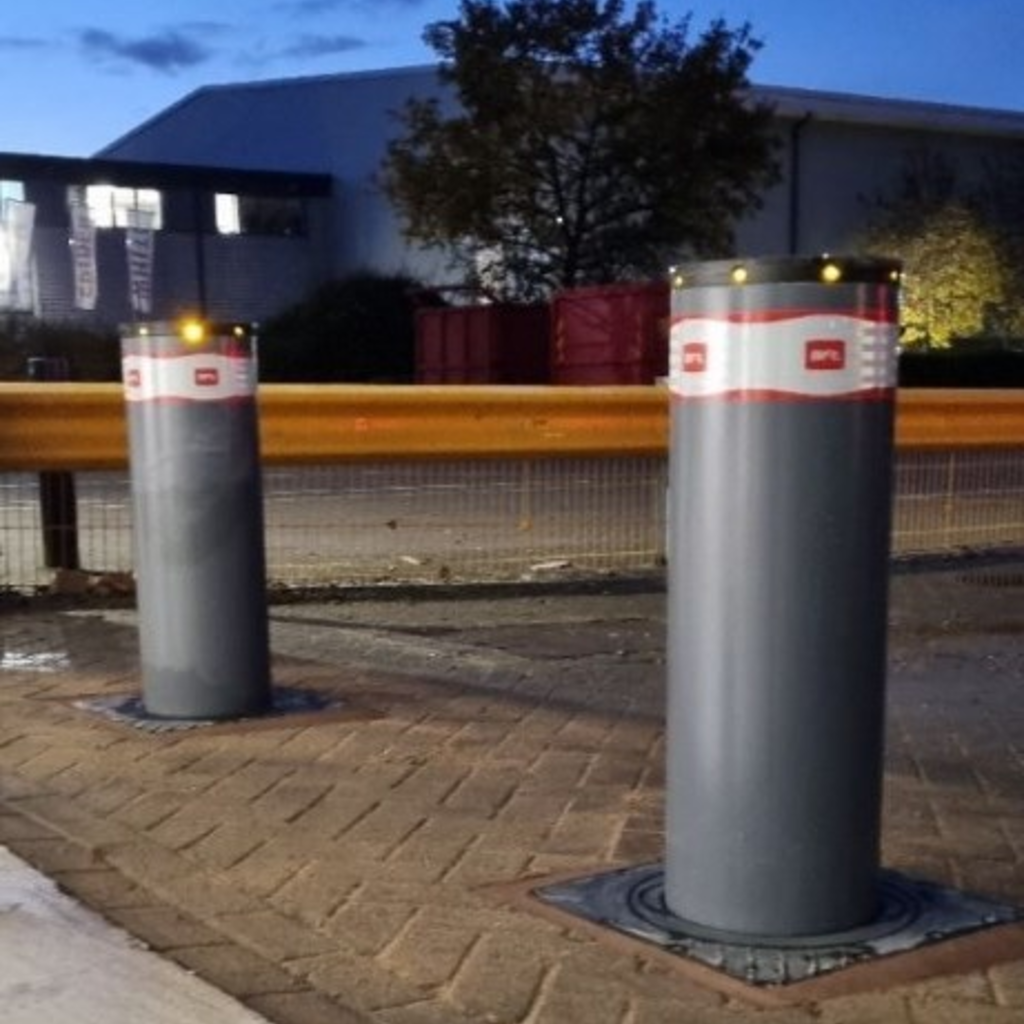

Project Images
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance, power, and build details for this model.
| Diameter | 275mm |
|---|---|
| Height (above ground) | 600mm |
| Bollard Wall Thickness | 6mm |
| Control Unit | Perseo CBD control unit is included |
| Transmitter/Key Fob (operates bollard) | Mitto RCB 02 Key Fob included x 2 |
| Application | Suitable for residential and commercial applications |
| Finish | Galvanised steel with an Anthracite Grey – RAL 7015 finish |
| Operator Type | Hydraulic |
| Bollard Material | Galvanised Steel |
| Rising Time | 5 Seconds |
| LED Light Crown | LED light crown around top of bollard |
| Acoustic Warning Signal | Included (can be deactivated if required) |
| Breaking Resistance | 250000 joules |
| Frequency of Use | Up to 3000 operations per day |
| Manufacturing Standards | BS1440 and BS EN ISO 1461 (2009) |
| Warranty | 12 month for product and installation |
Downloads

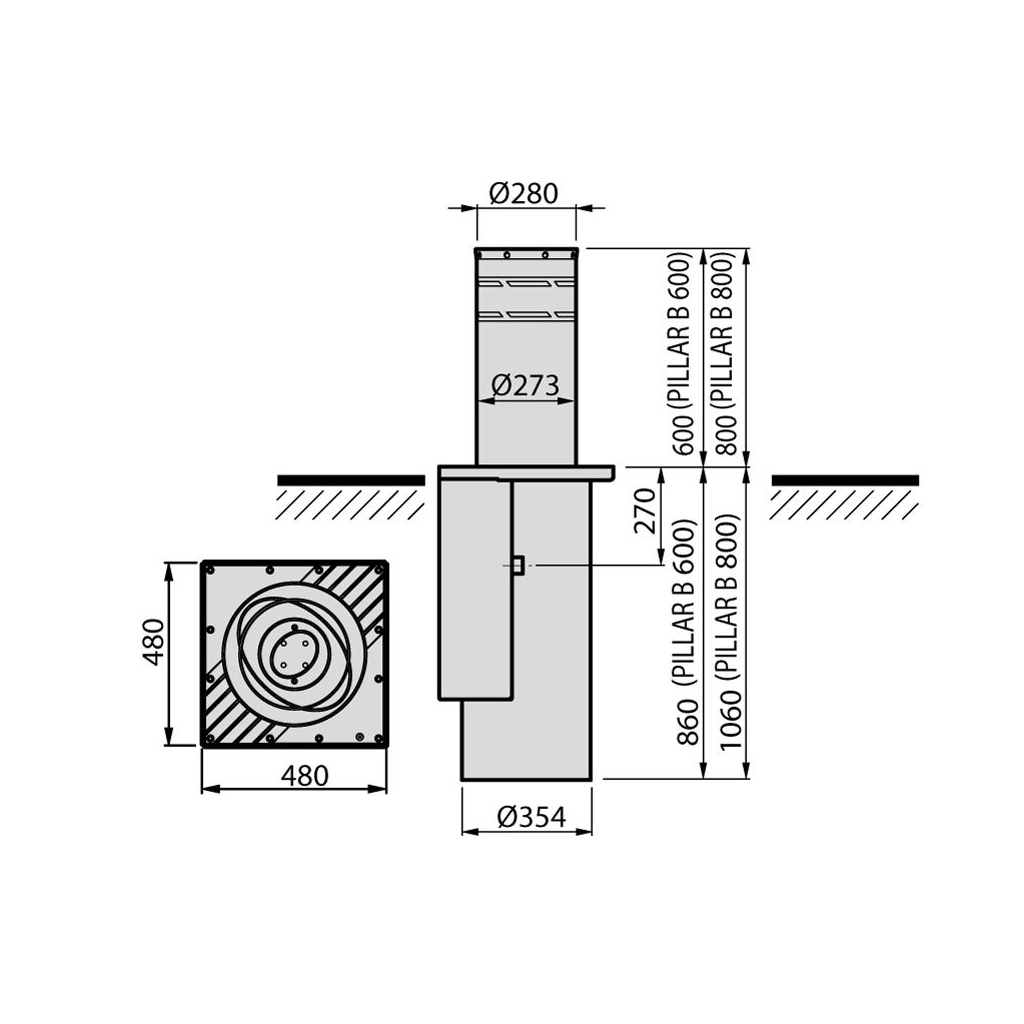

Datasheets, drawings and certificates for this product.
Compare Similar Bollards
Side-by-side comparison of similar products in the same category.
| Image | Model | Height | Diameter | Motor Type | Best Application | Warranty | Installation |
|---|---|---|---|---|---|---|---|
|
|
BFT Pillar B 275/600 Hydraulic Bollard – Complete Kit Current model | 600mm | 275mm | Hydraulic | Suitable for residential and commercial applications | 12 month for product and installation | Supply & Installation available |
|
Spartacus 200 (Ø) / 600 (H) Automatic Hydraulic Bollard – Complete Kit | 600mm | 275mm | Hydraulic | Commercial & high-security | 12 Months | Supply & Installation available |
|
Spartacus 275 (Ø) / 600 (H) Automatic Hydraulic Bollard – Complete Kit | 600mm | 275mm | Hydraulic | Commercial & high-security | 12 Months | Supply & Installation available |
|
Spartacus 200 (Ø) / 800 (H) Automatic Hydraulic Bollard – Complete Kit | 800mm | 200mm | Hydraulic | Commercial & high-security | 12 Months | Supply & Installation available |
Trusted Reviews
What customers say about BFT Pillar B 275/600 Hydraulic Bollard - Complete Kit and Bollard Security
Frequently Asked Questions
Common buying questions answered up front.
-
Most automatic bollard installations are completed within one working day once the site has been surveyed and prepared.
-
We recommend a scheduled service visit every 12 months to keep your bollard operating reliably and to validate the warranty.
-
All our automatic bollards come with a manufacturer-backed warranty. See the product Downloads section for the full document.
-
Stocked models typically install within 5 working days. Bespoke orders depend on specification and are quoted per project.
-
Most automatic bollards integrate with standard access control systems. Contact us with your existing setup and we will confirm compatibility.
-
Automatic bollards are commonly installed on driveways, commercial entrances, car parks, retail parks, schools and private estates.
