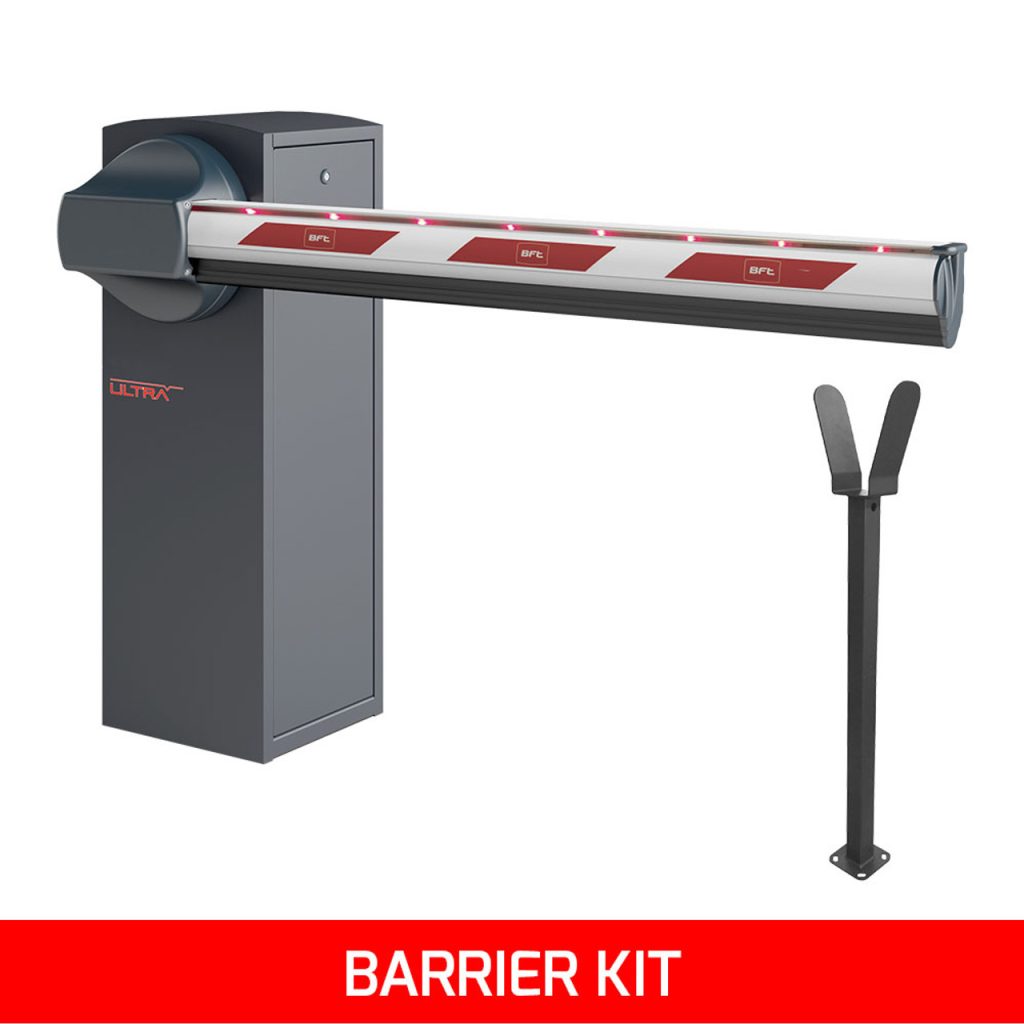

BFT MAXIMA ULTRA 68 Barrier Kit - 6m to 8m
- Lead Time 5 Working Days
Installation Available UK-wide
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview

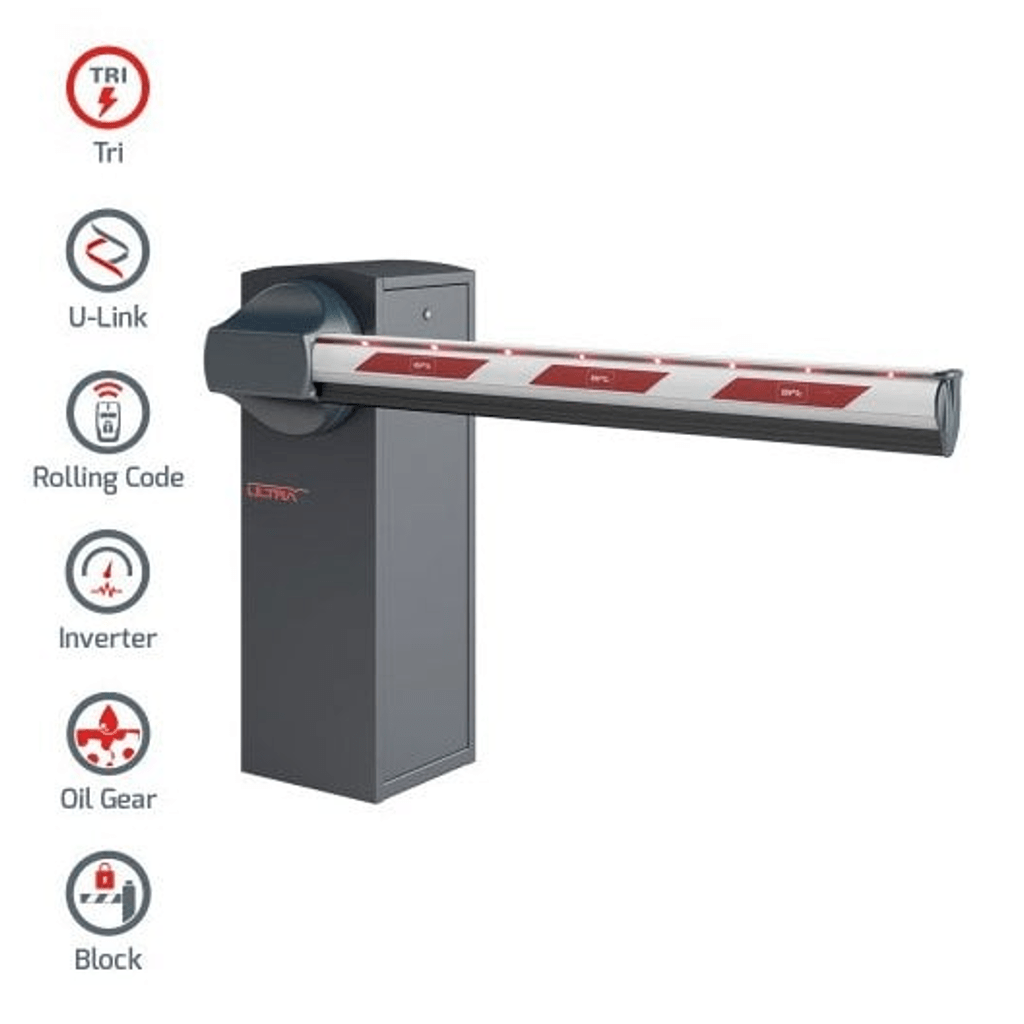

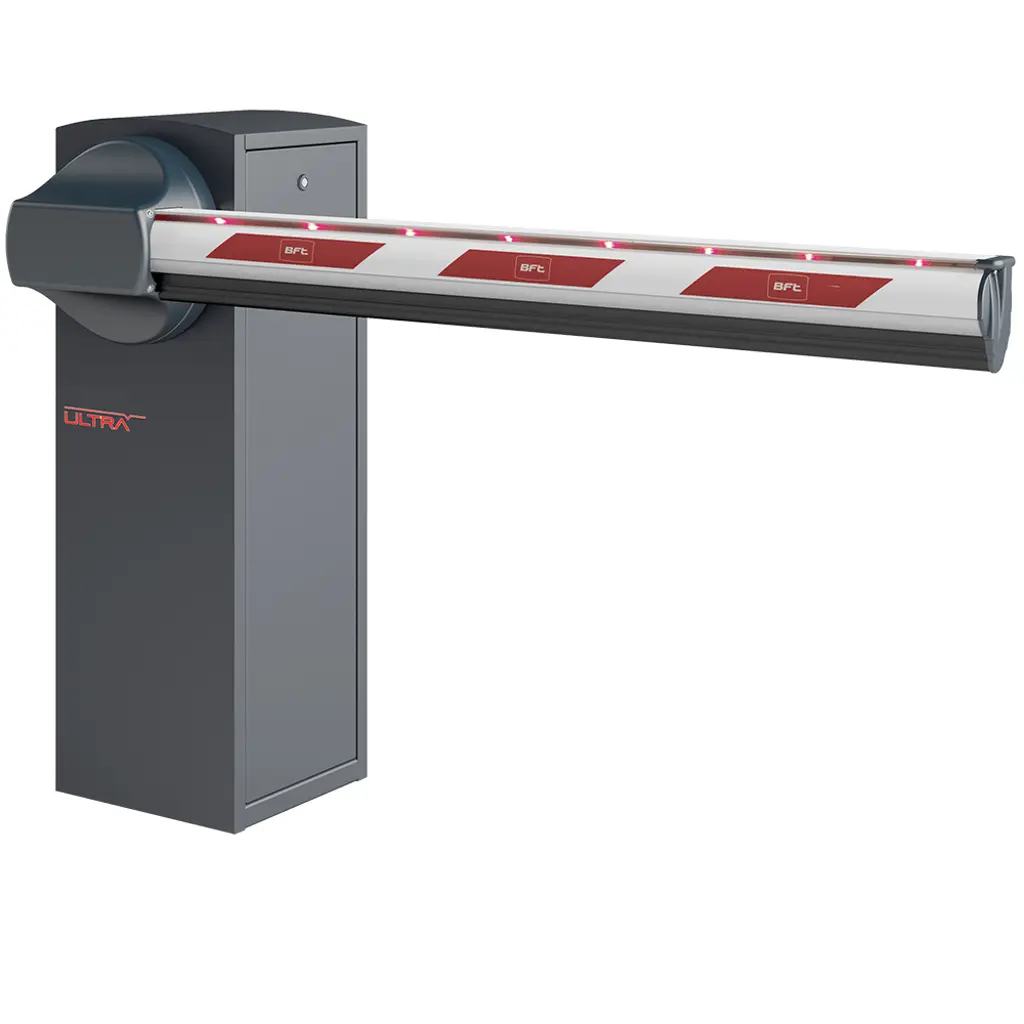

The Maxima Ultra 68 automatic barrier, available as an 8m kit, is a multi-purpose heavy system suitable for car parks, industrial sites, tolls and many other large scale secure sites. With a drive-through gap of between 4 to 8 metres, the Maxima Ultra is an adaptable yet robust electromechanical barrier system. It is capable of operating in adverse weather and temperature environments.
The entire barrier system is also compatible with BFT’s U-LINK system, allowing you to link all the automation products into a single PC-based control platform. The Maxima Ultra 68 is powered by the BFT CSB-Xtreme, a control panel dedicated to serving three-phase motor-powered barriers.
Hard-Wearing
- Capable of 30,000 cycles per day
- Robust metal outer casing
- Handles temperature extremes from -30 to +60 degrees
- IP54 level protection
Secure
- Single crank machine mechanism
- Mechanical locking system
Intelligent
- Impact reaction for opening and closing
- U-link compatible
- Integrated heater for low temperatures
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
-
Residential Driveways
-
Commercial Buildings
-
Schools
-
Business Parks
-
Warehouses
-
Retail Parks
-
Private Estates
Why Choose This Product?
Practical advantages that matter on real sites.
-
Heavy-duty construction
Built with reinforced steel for long-term outdoor performance.
-
Low maintenance
Designed to minimise service intervals and ongoing costs.
-
Reliable daily operation
Tested for thousands of cycles in high-traffic environments.
-
Suitable for high-traffic locations
Trusted in car parks, retail parks and commercial estates.
-
Professional UK installation available
Nationwide fitting by our accredited engineers.
Product Media
Watch product and installation videos, and browse real project photography.
Project Images
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance and build details for this model.
| Useful Passage | 4 – 6m, 6m – 8m |
|---|---|
| Frequency of Use | Intensive – continuous operation |
| Control Unit | CSB Xtreme |
| Motor Type | Three phase induction |
| Gear Unit Type | In Oil Bath |
| Motor Power Supply | 230v |
| Opening or Closing | 4.5 – 6 sec |
| Slowdown | In opening and closing |
| Lock | Mechanical |
| Release | Inside The Structure |
| Ambient conditions | From -40°C to 60°C |
| Protection Rating | IP54 |
Downloads
Datasheets, drawings and certificates for this product.
Compare Similar Bollards
Side-by-side comparison of similar products in the same category.
| Image | Model | Height | Diameter | Type | Best Application | Warranty | Installation |
|---|---|---|---|---|---|---|---|
|
|
BFT MAXIMA ULTRA 68 Barrier Kit – 6m to 8m Current model | Three phase induction | Suitable for residential and commercial applications | 12 Months | Installation available | ||
|
FAAC B614 Automatic Arm Barrier Kit – For Openings Up To 6m | Light Commercial | 12 Months | ||||
|
Beninca Lady 4 “Entry Level” Automatic Arm Barrier – For Openings between 2m & 4m | Suitable for residential and commercial applications | 12 Months | Installation available | |||
|
|
Beninca Lady 5 “Entry Level” Automatic Arm Barrier – For Openings between 4m & 5m | Suitable for residential and commercial applications | 12 Months | Installation available |
Trusted Reviews
What customers say about BFT MAXIMA ULTRA 68 Barrier Kit - 6m to 8m and Bollard Security
Frequently Asked Questions
Common buying questions answered up front.
-
Most automatic bollard installations are completed within one working day once the site has been surveyed and prepared.
-
We recommend a scheduled service visit every 12 months to keep your bollard operating reliably and to validate the warranty.
-
All our automatic bollards come with a manufacturer-backed warranty. See the product Downloads section for the full document.
-
Stocked models typically install within 5 working days. Bespoke orders depend on specification and are quoted per project.
-
Most automatic bollards integrate with standard access control systems. Contact us with your existing setup and we will confirm compatibility.
-
Automatic bollards are commonly installed on driveways, commercial entrances, car parks, retail parks, schools and private estates.
