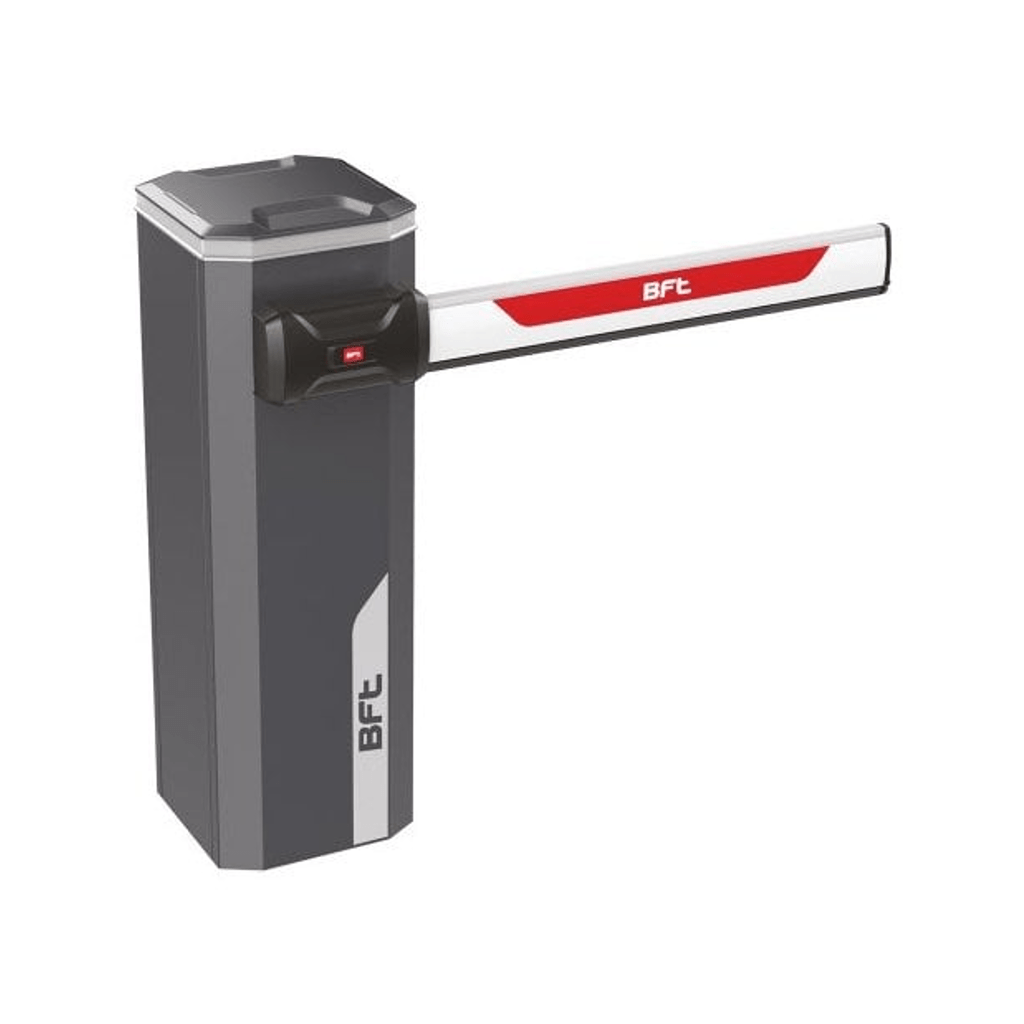

BFT MAXIMA ULTRA 36 Barrier Kit - 3m to 6m

The BFT Maxima Ultra 36 is a robust 230V AC electromechanical barrier designed for very high-frequency use. Fitted with an asynchronous three-phase motor and inverter, it delivers consistent, high-speed performance across demanding environments. Suitable for clear drive-through widths from 2 to 6 metres, it is ideal for large car parks, industrial facilities, and motorway toll stations where traffic flow is continuous and heavy.

Each kit includes a pre-sprung barrier arm, internal control panel with inverter, fixing bracket, and rubber buffer. For 4m, 5m, and 6m configurations, the kit also comes with either a fixed rest or swinging leg, depending on site requirements. Engineered for durability and efficiency, the Maxima Ultra 36 is built to perform reliably in the most intensive access control settings.

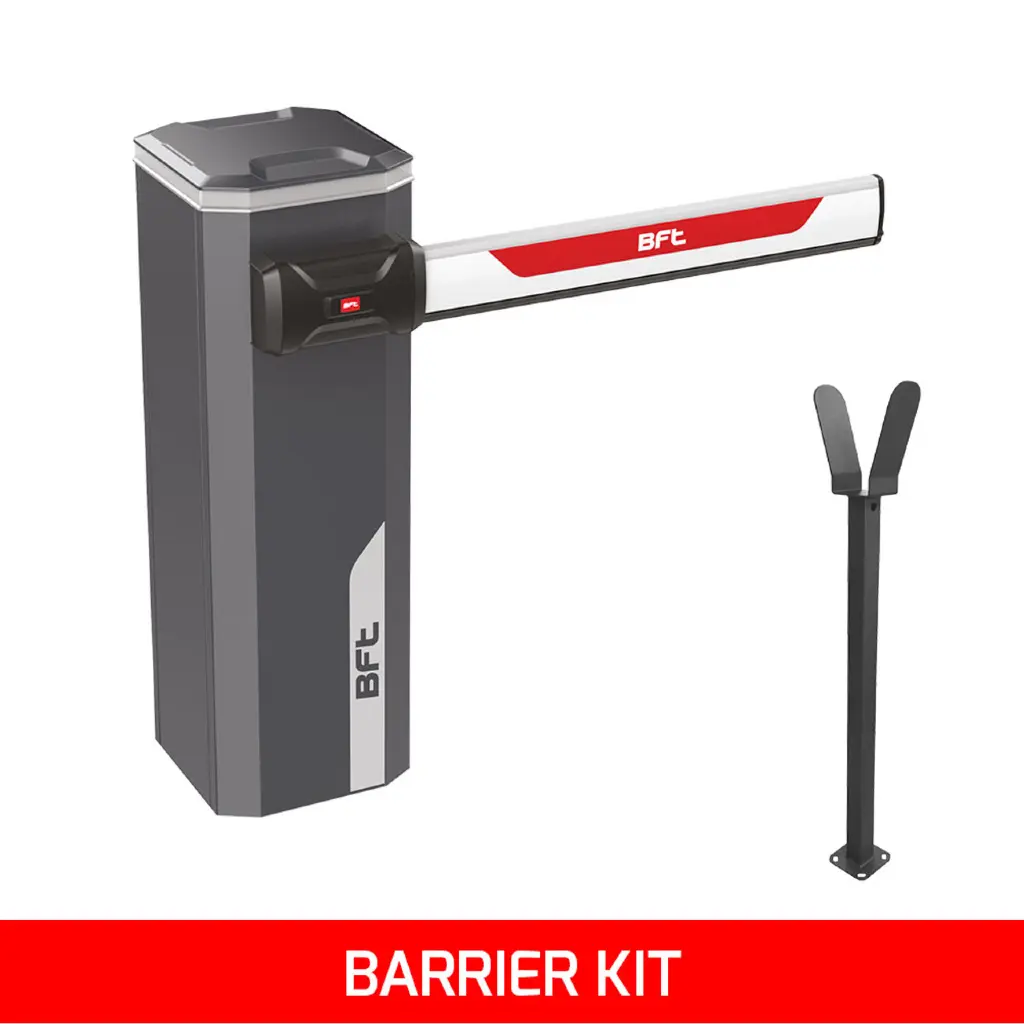

Included in kit:

• 1 x Maxima Ultra barrier
• 1 x Integrated control panel
• 1 x Boom inc. fixing bracket
• 1 x Fixed rest or swinging leg
• 1 x Manual release key

*Note

Order the 6.0m XL option if you require the following specification:

• 6m clear drive-through gap with swinging leg.
• 5.5m clear drive-through gap with lower skirt
• 5m or 5.5m clear drive-through gap with lower skirt and swinging leg

Maxima Ultra Installation

Installing and maintaining the Maxima Ultra Automatic Barrier is made easy with its LED Light Crown. This is mounted on the top of the cabinet and can communicate diagnostic information without access to the control panel. A multi-colour coded system provides maintenance and other vital information.

The barrier is also U-link compatible enabling integration with Parking and Building management systems. The barrier can be configured using the easy to access top-mounted control panel. Crafted to exceptional standards, this barrier system features a mechanical crankshaft, delivering fluid movement for the boom whilst controlling soft opening and closing.

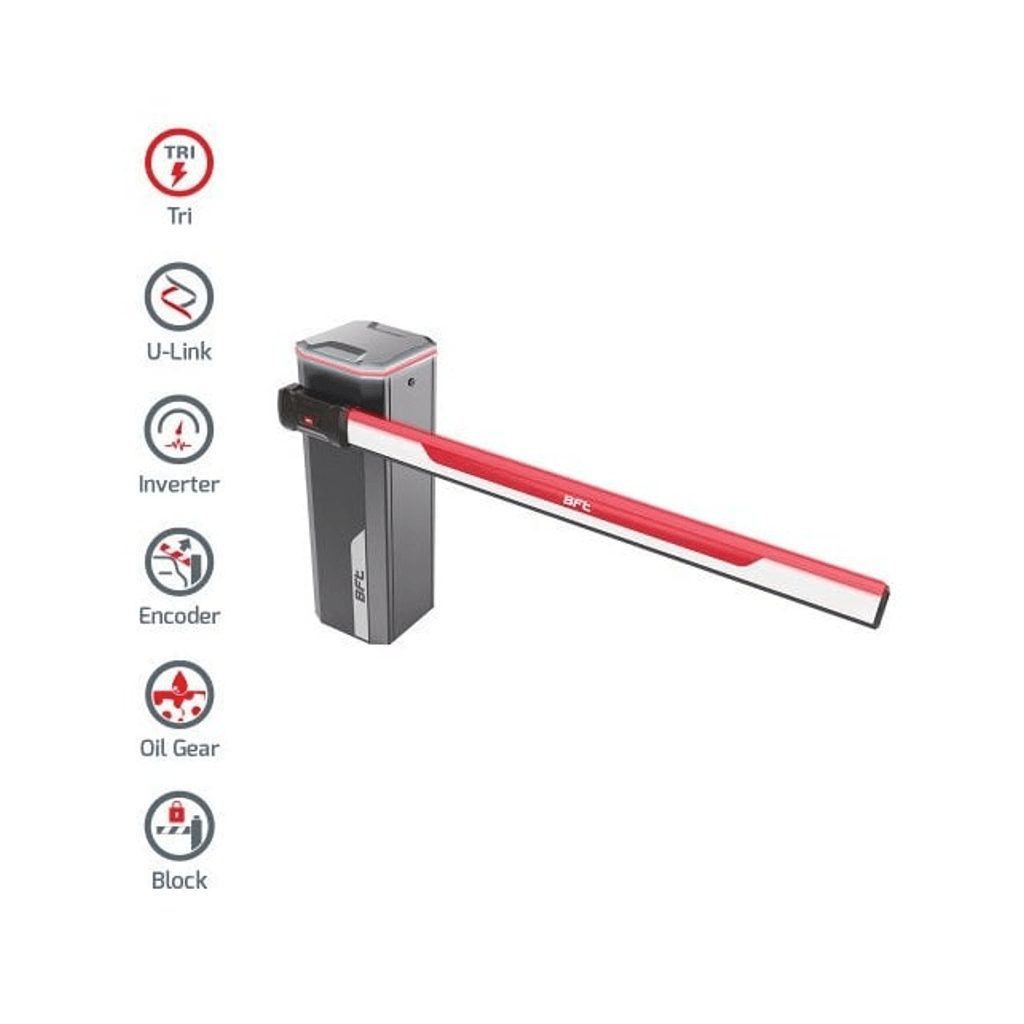

Features:

• Continuous use
• Oil bath gear motor
• Manage openings up to 6m
• Self-diagnostics function
• Asynchronous three-phase motor with inverter
• Control panel under the cap and compatible with U-Link
• Three access points for simplified maintenance
• Anti-vandal protection with connecting rod-crank system
