FP-04 HGV Traffic Control Plate
- Lead Time 5 Working Days
Installation Available UK-wide
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview

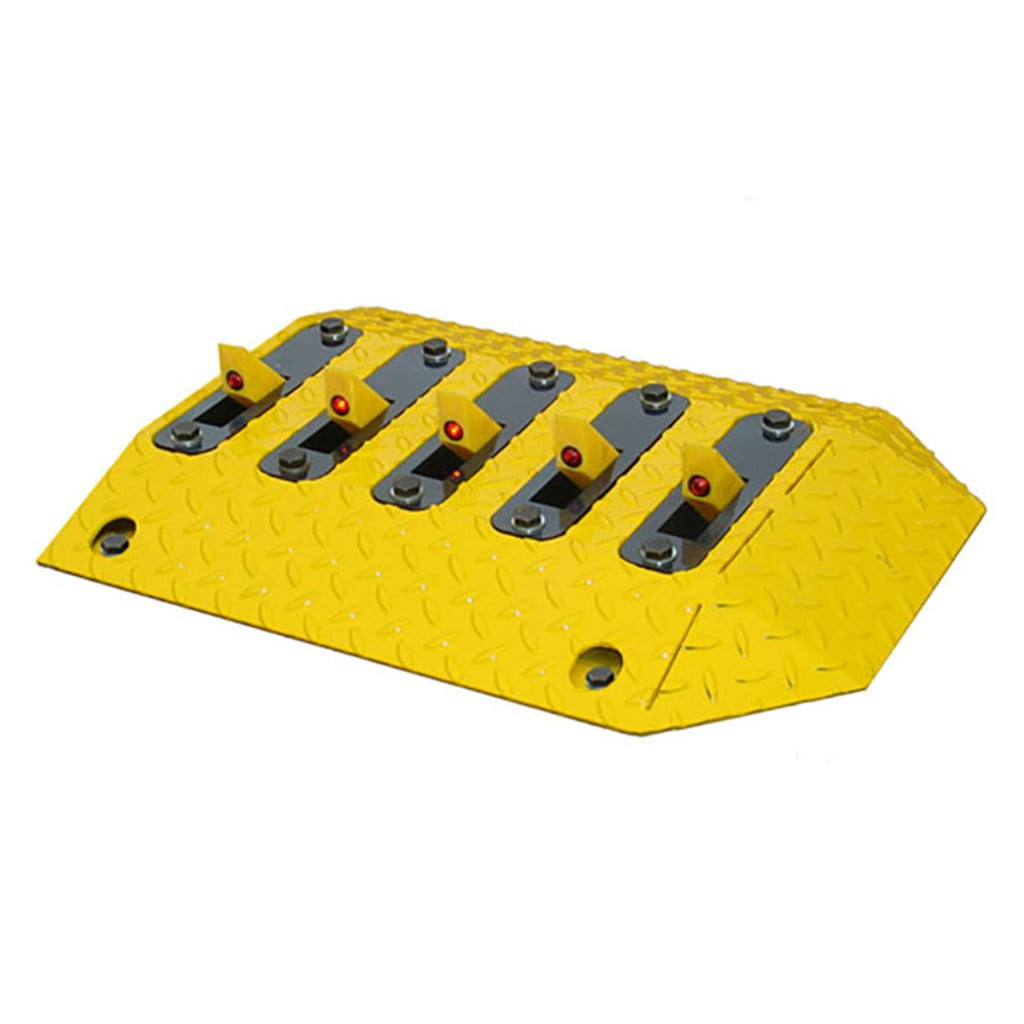

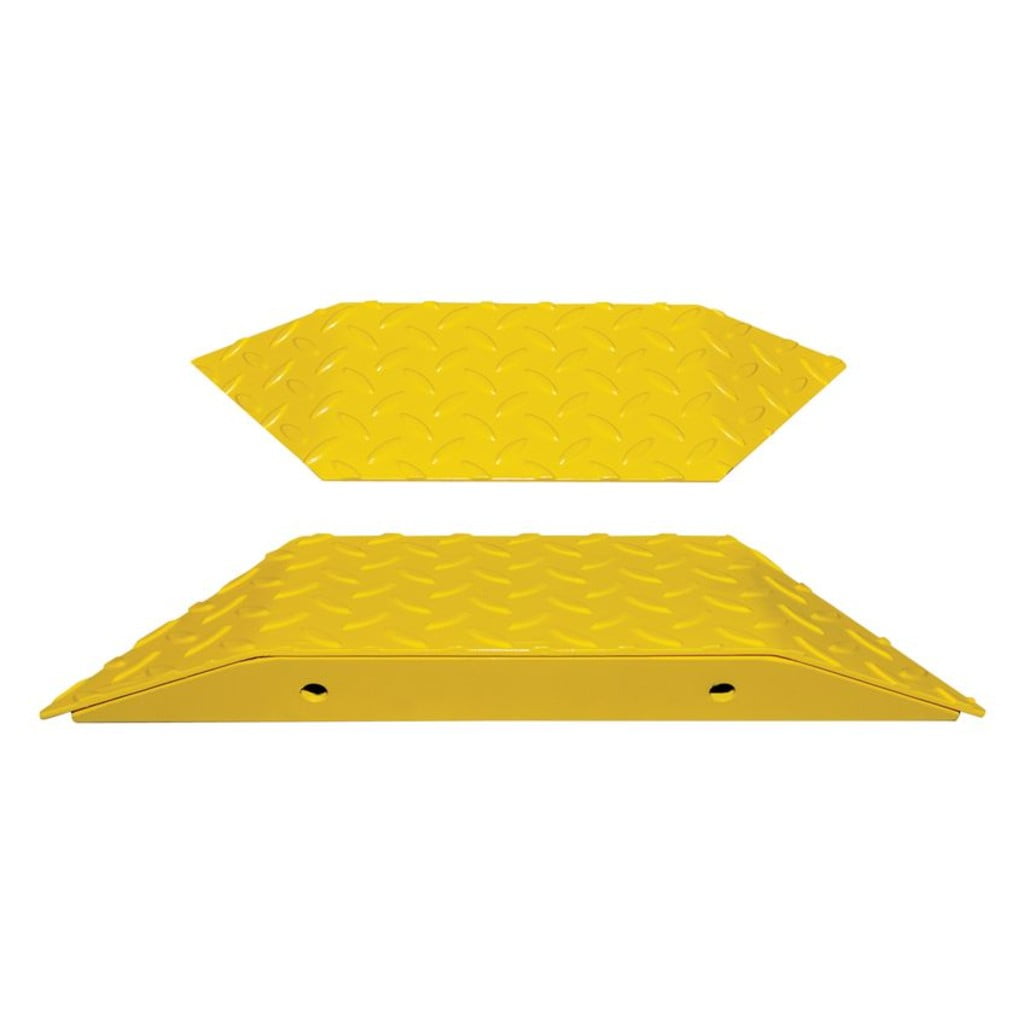

This FP-04 is a modular product and is available as a separate midsection with optional separate end caps to form either a straight continuous line or individual islands with end caps either side. Please see PDF Layout download for more information.
The springless directional ramp operates with a strong magnet, meaning that no spring replacement is required and the product is virtually maintenance free. With the use of magnets, the product is extremely quiet making it ideal for use in or near residential areas. Should the teeth become worn over time, spare replacement cartridges are available and are quick and easy to replace.
Highly visible with their high-density polyethylene teeth with built-in reflective studs provide the visual deterrent required to prevent traffic from travelling in the wrong direction.
Each unit is bolted down by use of a tarmac fixing or concrete fixing dependant on the surface. For more information on fitting please see our product installation download.
The FP-04 can be used with the optional lockdown bar which is placed over the teeth and bolted in place.
* Free fixings supplied are M12 x 100 concrete through bolt.
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
-
Residential Driveways
-
Commercial Buildings
-
Schools
-
Business Parks
-
Warehouses
-
Retail Parks
-
Private Estates
Why Choose This Product?
Practical advantages that matter on real sites.
-
Heavy-duty construction
Built with reinforced steel for long-term outdoor performance.
-
Low maintenance
Designed to minimise service intervals and ongoing costs.
-
Reliable daily operation
Tested for thousands of cycles in high-traffic environments.
-
Suitable for high-traffic locations
Trusted in car parks, retail parks and commercial estates.
-
Professional UK installation available
Nationwide fitting by our accredited engineers.
Product Media
Watch product and installation videos, and browse real project photography.
Project Images
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance and build details for this model.
| Application | High Traffic Areas |
|---|---|
| Suitability | Cars & HGV's |
| Dimensions | 508mm x 306mm x 105mm |
| Unit Weight | 23 kg |
| Flow Plate Material | Heavy Gauge Steel |
| Finish | Powder Coated |
| Mechanism | In-built counter balance & heavy duty spring |
| Fixing | Surface Mounted – Concrete Fixings Included |
| Maintenance | Recommended every 12 month |
Compare Similar Bollards
Side-by-side comparison of similar products in the same category.
| Image | Model | Height | Diameter | Type | Best Application | Warranty | Installation |
|---|---|---|---|---|---|---|---|
|
|
FP-04 HGV Traffic Control Plate Current model | Surface Mounted - Concrete Fixings Included | High Traffic Areas | 12 Months | Installation available | ||
|
FP-01 HGV Traffic Control Plate | Surface Mounted - Concrete Fixings Included | High Traffic Areas | 12 Months | Installation available | ||
|
Flowplate (Standard) & Speed Ramp Bundle | surface mounted - fixings can be purchased as an optional extra | High Traffic Areas, One way traffic flow | 24 months for product and installation | Installation available | ||
|
FP-05 Sharks Teeth Ramp | Surface Mounted - Concrete Fixings Included | High Traffic Areas, One way traffic flow | 12 Months | Installation available |
