Fixed Height Restriction Barrier (3-10m Wide)
- Warranty 12 month for product and installation
- Lead Time 5 Working Days
Installation Available UK-wide
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview

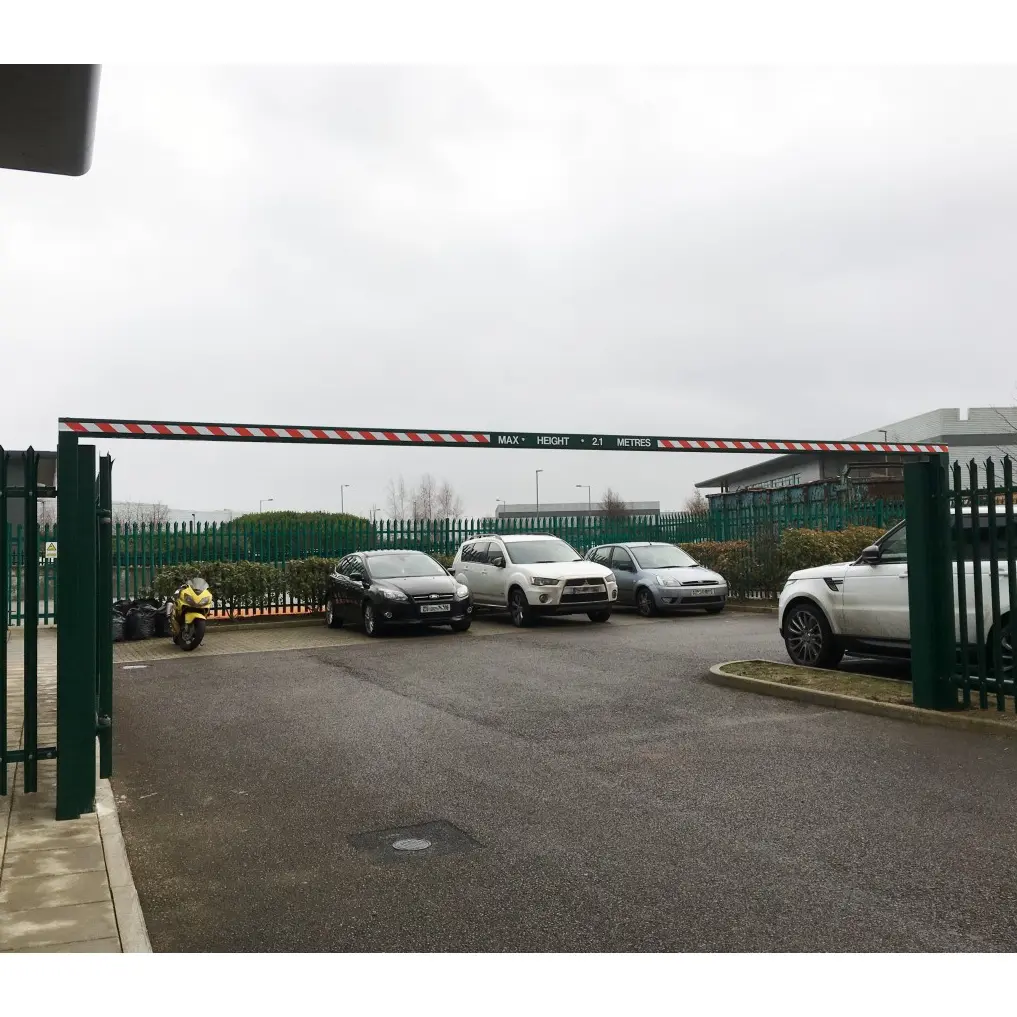

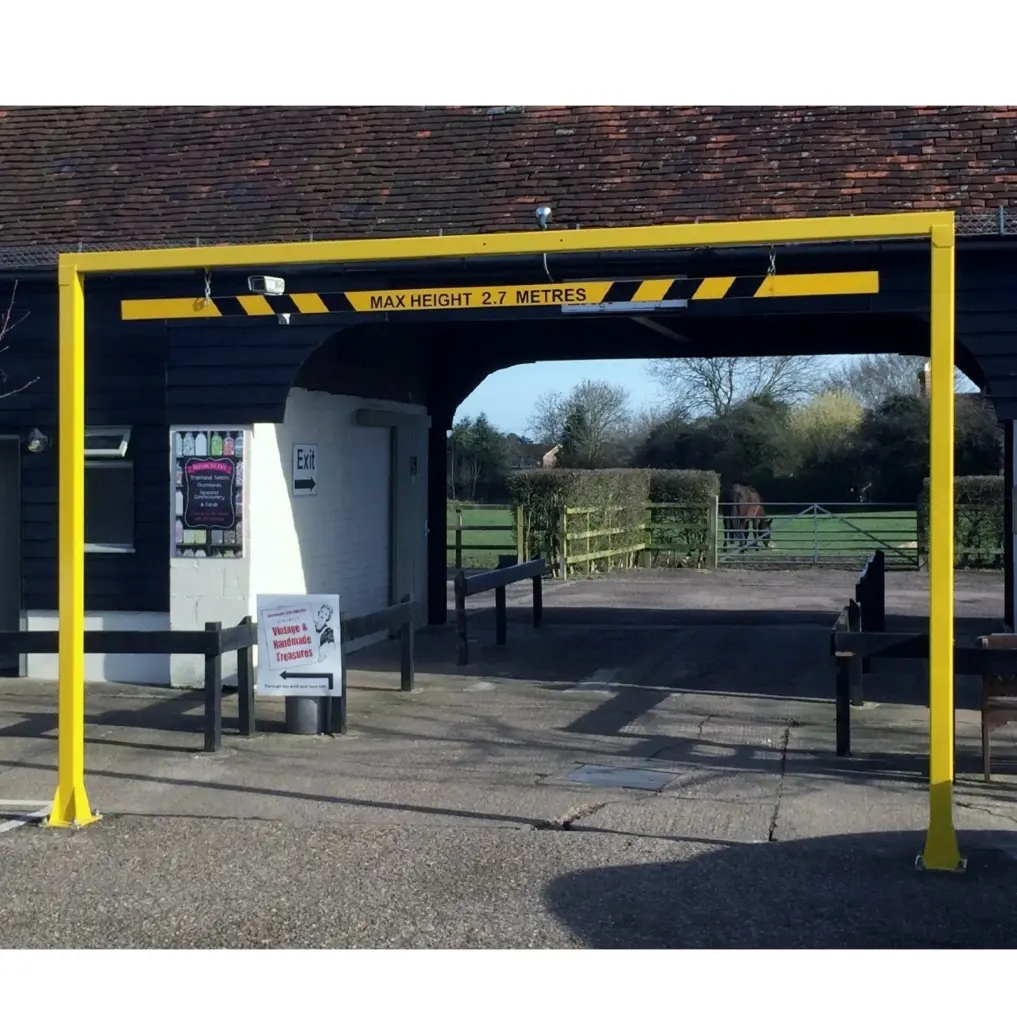

The SB.23F Height Restriction Barrier is an excellent solution for restricting access to unauthorised areas such as staff, public, and underground car parks.
This fixed barrier design is constructed from durable square box section steel, making it a reliable choice for access control. Customisable to meet your specifications, we offer a range of heights and multiple finish options.
Choose between surface mounting (for bolting down) or a permanent sunken installation (concrete in). For optimal security, we recommend the concrete-in option.
Finish Options
- Zinc Primed & Powder Coated (Standard colors; custom options available)
- Galvanized Only (For extended rust and corrosion protection)
- Galvanized & Powder Coated (For extended rust and corrosion protection with colour)
Specifications
- Constructed from 100mm Steel Square Box Section
- 6 Meters Between Posts (6.2m Outside Posts)
- Concrete In: 760mm Below Ground
- Bolt Down: 4 x 16mm holes (fixings not supplied)
- Height Options: 1.9, 2.0, 2.1, 2.2, 2.3 meters
- Optional signage reflects chosen height (e.g., “Maximum Height 2.1 Meters” for 2.1m selection)
- Standard powder coating colours available, with custom options upon request
- For marine environments, we recommend a galvanized finish for added durability
Installation Available
We offer professional installation. Contact us for a competitive, no-obligation quote.
Note: As this product is made to order, sizing confirmation may be required before manufacturing begins.
Delivery Times
- Powder Coated: 7-14 working days
- Galvanized: 7-5 working days
- Galvanized & Powder Coated: 14-21 working days
Warranty Information
This product includes a standard 1-year warranty.
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
-
Residential Driveways
-
Commercial Buildings
-
Schools
-
Business Parks
-
Warehouses
-
Retail Parks
-
Private Estates
Why Choose This Product?
Practical advantages that matter on real sites.
-
Heavy-duty construction
Built with reinforced steel for long-term outdoor performance.
-
Low maintenance
Designed to minimise service intervals and ongoing costs.
-
Reliable daily operation
Tested for thousands of cycles in high-traffic environments.
-
Suitable for high-traffic locations
Trusted in car parks, retail parks and commercial estates.
-
Professional UK installation available
Nationwide fitting by our accredited engineers.
Product Media
Watch product and installation videos, and browse real project photography.
Project Images
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance and build details for this model.
| Width | Options from 3m to 10m wide |
|---|---|
| Colour | Plain Galvanised (unpainted), Hot dipped galvanised with powder coated RAL colour |
| Height | Options from 1.9m to 2.3m |
| Finish | Plain galvanised finish or powder coated colour depending on option chosen. |
| Fixing | Can be root fixed or surface mounted depending on option chosen |
| Application | Suitable for commercial applications |
| Lock | Sliding shoot bolt (padlock not supplied) |
| Maintenance | Recommended every 12 month |
| Suitability | Any entrance that requires height restriction |
| Warranty | 12 month for product and installation |
Compare Similar Bollards
Side-by-side comparison of similar products in the same category.
| Image | Model | Height | Diameter | Type | Best Application | Warranty | Installation |
|---|---|---|---|---|---|---|---|
|
|
Fixed Height Restriction Barrier (3-10m Wide) Current model | Options from 1.9m to 2.3m | Can be root fixed or surface mounted depending on option chosen | Suitable for commercial applications | 12 month for product and installation | Installation available | |
|
Height Restrictor Swing Opening (3-6 Metres) Sturdy And Robust | 1.9m, 2.1m, 2.4m, 2.8m | Can be root fixed or surface mounted depending on option chosen | Suitable for commercial applications | 12 month for product and installation | Installation available | |
|
Height Restrictor ‘Easy Reach’ – 3-6m – Heavy Duty with low level locking | Options from 1.9m to 2.3m | Can be root fixed or surface mounted depending on option chosen | Suitable for commercial applications | 12 month for product and installation | ||
|
(Single Leaf) Combination Gate & Height Restrictor | Options from 1.9m to 2.3m | Can be root fixed or surface mounted depending on option chosen | Suitable for commercial applications | 12 month for product and installation | Installation available |
Trusted Reviews
What customers say about Fixed Height Restriction Barrier (3-10m Wide) and Bollard Security
Frequently Asked Questions
Common buying questions answered up front.
-
Most automatic bollard installations are completed within one working day once the site has been surveyed and prepared.
-
We recommend a scheduled service visit every 12 months to keep your bollard operating reliably and to validate the warranty.
-
All our automatic bollards come with a manufacturer-backed warranty. See the product Downloads section for the full document.
-
Stocked models typically install within 5 working days. Bespoke orders depend on specification and are quoted per project.
-
Most automatic bollards integrate with standard access control systems. Contact us with your existing setup and we will confirm compatibility.
-
Automatic bollards are commonly installed on driveways, commercial entrances, car parks, retail parks, schools and private estates.
